XSD Data File Information Author: Colin Smythe Date: 30th June, 2011 Version: 1.0 Status: Final Release Description: The service realisation of the Membership Management Service. The core data model consists of: Membership, Member and Role. History: Version 1.0: The first formal release of this PSM binding. License: IPR, License and Distribution Notices This machine readable file is derived from IMS Global Learning Consortium (GLC) specification IMS [spec name] Version [x.x] found at http://www.imsglobal.org/[xxx] and the original IMS GLC schema binding or code base http://www.imsglobal.org/[binding document]. Recipients of this document are requested to submit, with their comments, notification of any relevant patent claims or other intellectual property rights of which they may be aware that might be infringed by the schema binding contained in this document. IMS GLC takes no position regarding the validity or scope of any intellectual property or other rights that might be claimed to pertain to the implementation or use of the technology described in this document or the extent to which any license under such rights might or might not be available; neither does it represent that it has made any effort to identify any such rights. Information on IMS GLCs procedures with respect to rights in IMS GLC specifications can be found at the IMS GLC Intellectual Property Rights web page: http://www.imsglobal.org/ipr/imsipr_policyFinal.pdf. Copyright (c) IMS Global Learning Consortium 1999-2011. All Rights Reserved. License Notice for Users Users of products or services that include this document are hereby granted a worldwide, royalty-free, non-exclusive license to use this document. Distribution Notice for Developers Developers of products or services that are not original incorporators of this document and have not changed this document, that is, are distributing a software product that incorporates this document as is from a third-party source other than IMS, are hereby granted permission to copy, display and distribute the contents of this document in any medium for any purpose without fee or royalty provided that you include this IPR, License and Distribution notice in its entirety on ALL copies, or portions thereof. Developers of products or services that are original incorporators of this document and wish to provide distribution of this document as is or with modifications and developers of products and services that are not original incorporators of this document and have changed this document, are required to register with the IMS GLC community on the IMS GLC website as described in the following two paragraphs:- * If you wish to distribute this document as is, with no modifications, you are hereby granted permission to copy, display and distribute the contents of this document in any medium for any purpose without fee or royalty provided that you include this IPR, License and Distribution notice in its entirety on ALL copies, or portions thereof, that you make and you complete a valid license registration with IMS and receive an email from IMS granting the license. To register, follow the instructions on the IMS website: http://www.imsglobal.org/specificationdownload.cfm. Once registered you are granted permission to transfer unlimited distribution rights of this document for the purposes of third-party or other distribution of your product or service that incorporates this document as long as this IPR, License and Distribution notice remains in place in its entirety; * If you wish to create and distribute a derived work from this document, you are hereby granted permission to copy, display and distribute the contents of the derived work in any medium for any purpose without fee or royalty provided that you include this IPR, License and Distribution notice in its entirety on ALL copies, or portions thereof, that you make and you complete a valid profile registration with IMS GLC and receive an email from IMS GLC granting the license. To register, follow the instructions on the IMS GLC website: http://www.imsglobal.org/profile/. Once registered you are granted permission to transfer unlimited distribution rights of the derived work for the purposes of third-party or other distribution of your product or service that incorporates the derived work as long as this IPR, License and Distribution notice remains in place in its entirety. The limited permissions granted above are perpetual and will not be revoked by IMS GLC or its successors or assigns. THIS SPECIFICATION IS BEING OFFERED WITHOUT ANY WARRANTY WHATSOEVER, AND IN PARTICULAR, ANY WARRANTY OF NONINFRINGEMENT IS EXPRESSLY DISCLAIMED. ANY USE OF THIS SPECIFICATION SHALL BE MADE ENTIRELY AT THE IMPLEMENTERS OWN RISK, AND NEITHER THE CONSORTIUM NOR ANY OF ITS MEMBERS OR SUBMITTERS, SHALL HAVE ANY LIABILITY WHATSOEVER TO ANY IMPLEMENTER OR THIRD PARTY FOR ANY DAMAGES OF ANY NATURE WHATSOEVER, DIRECTLY OR INDIRECTLY, ARISING FROM THE USE OF THIS SPECIFICATION.UML Source Service File Information Choreography: Sync Status Object: StatusInfoSource UML File Information The source file information must be supplied as an XMI file (without diagram layout information). The supported UML authoring tools are: (a) Poseidon – v6 (and later)Source XSLT File Information XSL Generator: UMLtoWSDLTransformv0p9p5.xsl XSLT Processor: Xalan Release: 1.0 Beta 4 Date: 31st March, 2011IMS GLC Auto-generation Binding Tool-kit (I-BAT) This file was auto-generated using the IMS GLC Binding Auto-generation Tool-kit (I-BAT). While every attempt has been made to ensure that this tool auto-generates the files correctly, users should be aware that this is an experimental tool. Permission is given to make use of this tool. IMS GLC makes no claim on the materials created by third party users of this tool. Details on how to use this tool are contained in the IMS GLC "I-BAT" Documentation available at the IMS GLC web-site. Tool Copyright: 2005-2011 (c) IMS Global Learning Consortium Inc. All Rights Reserved.

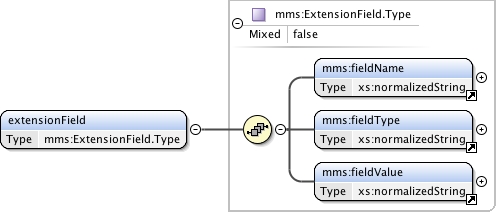

<xs:complexType name="ExtensionField.Type" mixed="false"><xs:annotation><xs:documentation source="umldocumentation">The ExtensionField complexType is the container for each of the extension entries. This is a name/type/value triple.</xs:documentation></xs:annotation><xs:sequence><xs:element ref="mms:fieldName" minOccurs="1" maxOccurs="1"/><xs:element ref="mms:fieldType" minOccurs="1" maxOccurs="1"/><xs:element ref="mms:fieldValue" minOccurs="1" maxOccurs="1"/></xs:sequence></xs:complexType>

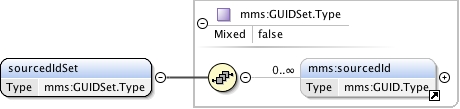

<xs:complexType name="GUIDSet.Type" mixed="false"><xs:annotation><xs:documentation source="umldocumentation">The GUIDSet complexType is the container for a set of SourcedIds.</xs:documentation></xs:annotation><xs:sequence><xs:element ref="mms:sourcedId" minOccurs="0" maxOccurs="unbounded"/></xs:sequence></xs:complexType>

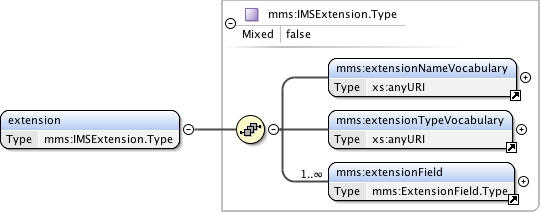

<xs:complexType name="IMSExtension.Type" mixed="false"><xs:annotation><xs:documentation source="umldocumentation">The IMSExtension complexType is the container for the set of extension information.</xs:documentation></xs:annotation><xs:sequence><xs:element ref="mms:extensionNameVocabulary" minOccurs="1" maxOccurs="1"/><xs:element ref="mms:extensionTypeVocabulary" minOccurs="1" maxOccurs="1"/><xs:element ref="mms:extensionField" minOccurs="1" maxOccurs="unbounded"/></xs:sequence></xs:complexType>

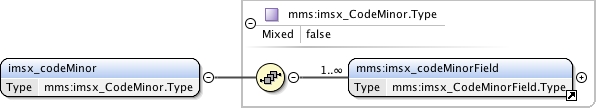

<xs:complexType name="imsx_CodeMinor.Type" mixed="false"><xs:annotation><xs:documentation source="umldocumentation">The CodeMinor complexType is the container for the set of code minor status codes reported in the associated IMS SOAP message header.</xs:documentation></xs:annotation><xs:sequence><xs:element ref="mms:imsx_codeMinorField" minOccurs="1" maxOccurs="unbounded"/></xs:sequence></xs:complexType>

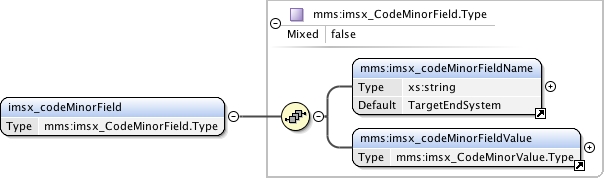

<xs:complexType name="imsx_CodeMinorField.Type" mixed="false"><xs:annotation><xs:documentation source="umldocumentation">The CodeMinorField complexType is the container a single code minor status code.</xs:documentation></xs:annotation><xs:sequence><xs:element ref="mms:imsx_codeMinorFieldName" minOccurs="1" maxOccurs="1"/><xs:element ref="mms:imsx_codeMinorFieldValue" minOccurs="1" maxOccurs="1"/></xs:sequence></xs:complexType>
The RequestHeaderInfo complexType is the container for the information to be placed in the SOAP header for the request message transmitted for the associated operation call.

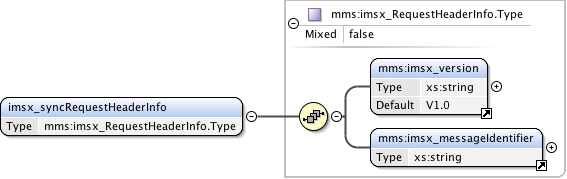

<xs:complexType name="imsx_RequestHeaderInfo.Type" mixed="false"><xs:annotation><xs:documentation source="umldocumentation">The RequestHeaderInfo complexType is the container for the information to be placed in the SOAP header for the request message transmitted for the associated operation call.</xs:documentation></xs:annotation><xs:sequence><xs:element ref="mms:imsx_version" minOccurs="1" maxOccurs="1"/><xs:element ref="mms:imsx_messageIdentifier" minOccurs="1" maxOccurs="1"/></xs:sequence></xs:complexType>
The ResponseHeaderInfo complexType is the container for the information to be placed in the SOAP header for the response message transmitted for the associated operation call.

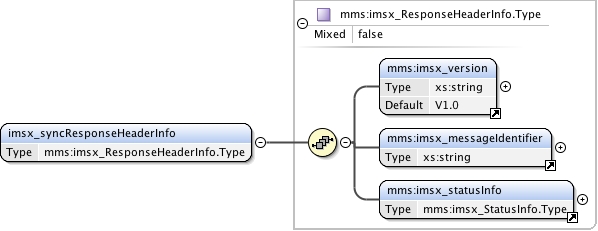

<xs:complexType name="imsx_ResponseHeaderInfo.Type" mixed="false"><xs:annotation><xs:documentation source="umldocumentation">The ResponseHeaderInfo complexType is the container for the information to be placed in the SOAP header for the response message transmitted for the associated operation call.</xs:documentation></xs:annotation><xs:sequence><xs:element ref="mms:imsx_version" minOccurs="1" maxOccurs="1"/><xs:element ref="mms:imsx_messageIdentifier" minOccurs="1" maxOccurs="1"/><xs:element ref="mms:imsx_statusInfo" minOccurs="1" maxOccurs="1"/></xs:sequence></xs:complexType>
The StatusInfo complexType is the container for the status code and associated information returned within the SOAP message as defined by the IMS GWSv1.0 specification.

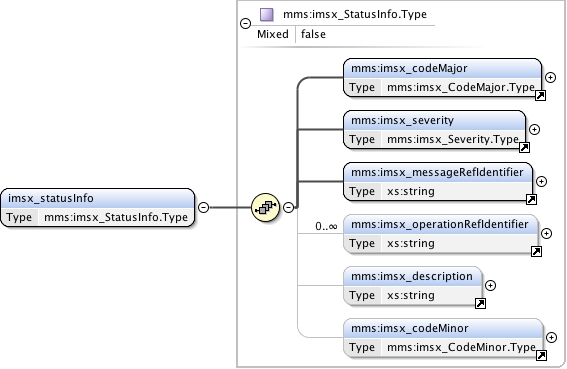

<xs:complexType name="imsx_StatusInfo.Type" mixed="false"><xs:annotation><xs:documentation source="umldocumentation">The StatusInfo complexType is the container for the status code and associated information returned within the SOAP message as defined by the IMS GWSv1.0 specification.</xs:documentation></xs:annotation><xs:sequence><xs:element ref="mms:imsx_codeMajor" minOccurs="1" maxOccurs="1"/><xs:element ref="mms:imsx_severity" minOccurs="1" maxOccurs="1"/><xs:element ref="mms:imsx_messageRefIdentifier" minOccurs="1" maxOccurs="1"/><xs:element ref="mms:imsx_operationRefIdentifier" minOccurs="0" maxOccurs="unbounded"/><xs:element ref="mms:imsx_description" minOccurs="0" maxOccurs="1"/><xs:element ref="mms:imsx_codeMinor" minOccurs="0" maxOccurs="1"/></xs:sequence></xs:complexType>

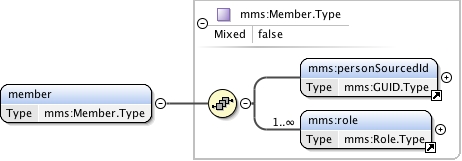

<xs:complexType name="Member.Type" mixed="false"><xs:annotation><xs:documentation source="umldocumentation">The Member complexType is the container for the information about the Person who is the member. Each Person must have one or more roles.</xs:documentation></xs:annotation><xs:sequence><xs:element ref="mms:personSourcedId" minOccurs="1" maxOccurs="1"/><xs:element ref="mms:role" minOccurs="1" maxOccurs="unbounded"/></xs:sequence></xs:complexType>
The Role complexType is the container for the information about the role for the Person. The roleType and subRole are defined using external vocabularies defined in VDEX files.
<xs:complexType name="Role.Type" mixed="false"><xs:annotation><xs:documentation source="umldocumentation">The Role complexType is the container for the information about the role for the Person. The roleType and subRole are defined using external vocabularies defined in VDEX files.</xs:documentation></xs:annotation><xs:sequence><xs:element ref="mms:roleType" minOccurs="1" maxOccurs="1"/><xs:element ref="mms:subRole" minOccurs="0" maxOccurs="1"/><xs:element ref="mms:timeFrame" minOccurs="0" maxOccurs="1"/><xs:element ref="mms:status" minOccurs="0" maxOccurs="1"/><xs:element ref="mms:dateTime" minOccurs="0" maxOccurs="1"/><xs:element ref="mms:creditHours" minOccurs="0" maxOccurs="1"/><xs:element ref="mms:dataSource" minOccurs="0" maxOccurs="1"/><xs:element ref="mms:recordInfo" minOccurs="0" maxOccurs="1"/><xs:element ref="mms:extension" minOccurs="0" maxOccurs="1"/></xs:sequence></xs:complexType>

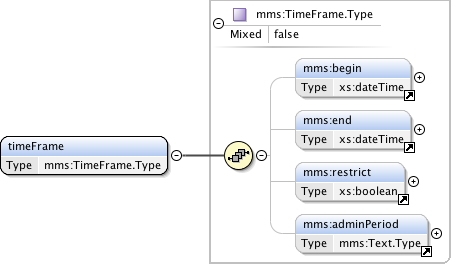

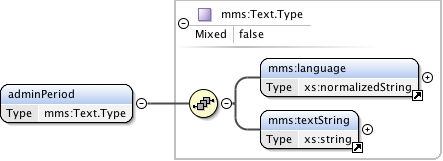

<xs:complexType name="TimeFrame.Type" mixed="false"><xs:annotation><xs:documentation source="umldocumentation">The TimeFrame complexType is the container for time information about this role.</xs:documentation></xs:annotation><xs:sequence><xs:element ref="mms:begin" minOccurs="0" maxOccurs="1"/><xs:element ref="mms:end" minOccurs="0" maxOccurs="1"/><xs:element ref="mms:restrict" minOccurs="0" maxOccurs="1"/><xs:element ref="mms:adminPeriod" minOccurs="0" maxOccurs="1"/></xs:sequence></xs:complexType>
<xs:complexType name="Text.Type" mixed="false"><xs:annotation><xs:documentation source="umldocumentation">The Text complexType is the container for a language specific string. The language is denoted using the RFC 4646..</xs:documentation></xs:annotation><xs:sequence><xs:element ref="mms:language" minOccurs="1" maxOccurs="1"/><xs:element ref="mms:textString" minOccurs="1" maxOccurs="1"/></xs:sequence></xs:complexType>
The Metadata complexType is the container for meta-data that is used to describe an object. At the current time this is a set of name/type/value triples.

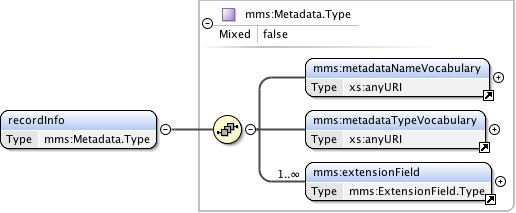

<xs:complexType name="Metadata.Type" mixed="false"><xs:annotation><xs:documentation source="umldocumentation">The Metadata complexType is the container for meta-data that is used to describe an object. At the current time this is a set of name/type/value triples.</xs:documentation></xs:annotation><xs:sequence><xs:element ref="mms:metadataNameVocabulary" minOccurs="1" maxOccurs="1"/><xs:element ref="mms:metadataTypeVocabulary" minOccurs="1" maxOccurs="1"/><xs:element ref="mms:extensionField" minOccurs="1" maxOccurs="unbounded"/></xs:sequence></xs:complexType>
The Membership comlexType is the container for the Membership data model. The collection object is identified as a SourcedId. Each membership has a single Person as its member.
<xs:complexType name="Membership.Type" mixed="false"><xs:annotation><xs:documentation source="umldocumentation">The Membership comlexType is the container for the Membership data model. The collection object is identified as a SourcedId. Each membership has a single Person as its member.</xs:documentation></xs:annotation><xs:sequence><xs:element ref="mms:collectionSourcedId" minOccurs="1" maxOccurs="1"/><xs:element ref="mms:membershipIdType" minOccurs="1" maxOccurs="1"/><xs:element ref="mms:member" minOccurs="1" maxOccurs="1"/><xs:element ref="mms:dataSource" minOccurs="0" maxOccurs="1"/></xs:sequence></xs:complexType>
This membershipRecord complexType is the top-level container used to associate the SourcedGUID with the actual Membership object. This contains the sourcedId of the membership object itself.
<xs:complexType name="MembershipRecord.Type" mixed="false"><xs:annotation><xs:documentation source="umldocumentation">This membershipRecord complexType is the top-level container used to associate the SourcedGUID with the actual Membership object. This contains the sourcedId of the membership object itself.</xs:documentation></xs:annotation><xs:sequence><xs:element ref="mms:sourcedGUID" minOccurs="1" maxOccurs="1"/><xs:element ref="mms:membership" minOccurs="1" maxOccurs="1"/></xs:sequence></xs:complexType>

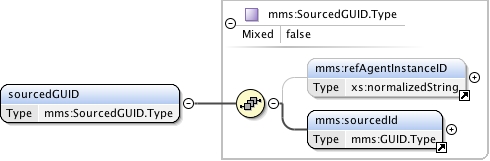

<xs:complexType name="SourcedGUID.Type" mixed="false"><xs:annotation><xs:documentation source="umldocumentation">The SourcedGUID complexType is the container for the extended sourcedId. The extension is the reference agent instance identifier.</xs:documentation></xs:annotation><xs:sequence><xs:element ref="mms:refAgentInstanceID" minOccurs="0" maxOccurs="1"/><xs:element ref="mms:sourcedId" minOccurs="1" maxOccurs="1"/></xs:sequence></xs:complexType>

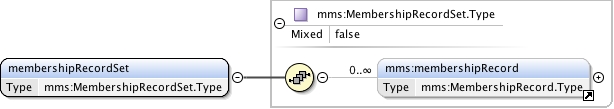

<xs:complexType name="MembershipRecordSet.Type" mixed="false"><xs:annotation><xs:documentation source="umldocumentation">The MembershipRecordSet is the complexType to contain a set of membership records.</xs:documentation></xs:annotation><xs:sequence><xs:element ref="mms:membershipRecord" minOccurs="0" maxOccurs="unbounded"/></xs:sequence></xs:complexType>
