5.1 Service Data Model XSD Documentation

Group by:

http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0

Elements
Main schema CourseManagementServiceSyncXSD.xsd
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Annotations
XSD Data File Information
            Author:         Colin Smythe
            Date:           30th June, 2011
            Version:        Final 1.0
            Status:         Final Release
            Description:    The service realisation of the Course Management Service.  The core data model consists
                            of: CourseTemplate, CourseOffering, CourseSection and SectionAssociation.

            History:        Version 1.0: The first formal release of this PSM binding.

            License:        IPR, License and Distribution Notices

                            This machine readable file is derived from IMS Global Learning Consortium (GLC) specification IMS [spec name] Version [x.x]
                            found at http://www.imsglobal.org/[xxx] and the original IMS GLC schema binding or code base
                            http://www.imsglobal.org/[binding document].

                            Recipients of this document are requested to submit, with their comments, notification of any
                            relevant patent claims or other intellectual property rights of which they may be aware that might be
                            infringed by the schema binding contained in this document.

                            IMS GLC takes no position regarding the validity or scope of any intellectual property or other
                            rights that might be claimed to pertain to the implementation or use of the technology described in this
                            document or the extent to which any license under such rights might or might not be available; neither
                            does it represent that it has made any effort to identify any such rights. Information on IMS GLCs
                            procedures with respect to rights in IMS GLC specifications can be found at the IMS GLC Intellectual Property
                            Rights web page: http://www.imsglobal.org/ipr/imsipr_policyFinal.pdf.

                            Copyright (c) IMS Global Learning Consortium 1999-2011. All Rights Reserved.

                            License Notice for Users

                            Users of products or services that include this document are hereby granted a worldwide, royalty-free,
                            non-exclusive license to use this document.

                            Distribution Notice for Developers

                            Developers of products or services that are not original incorporators of this document and
                            have not changed this document, that is, are distributing a software product that incorporates this
                            document as is from a third-party source other than IMS, are hereby granted permission to copy,
                            display and distribute the contents of this document in any medium for any purpose without fee or
                            royalty provided that you include this IPR, License and Distribution notice in its entirety on ALL
                            copies, or portions thereof.

                            Developers of products or services that are original incorporators of this document and wish
                            to provide distribution of this document as is or with modifications and developers of products and
                            services that are not original incorporators of this document and have changed this document, are
                            required to register with the IMS GLC community on the IMS GLC website as described in the following two
                            paragraphs:-

                            *  If you wish to distribute this document as is, with no modifications, you are hereby granted
                               permission to copy, display and distribute the contents of this document in any medium for any
                               purpose without fee or royalty provided that you include this IPR, License and Distribution notice in
                               its entirety on ALL copies, or portions thereof, that you make and you complete a valid license
                               registration with IMS and receive an email from IMS granting the license. To register, follow the
                               instructions on the IMS website: http://www.imsglobal.org/specificationdownload.cfm. Once
                               registered you are granted permission to transfer unlimited distribution rights of this document for the
                               purposes of third-party or other distribution of your product or service that incorporates this
                               document as long as this IPR, License and Distribution notice remains in place in its entirety;

                            *  If you wish to create and distribute a derived work from this document, you are hereby
                               granted permission to copy, display and distribute the contents of the derived work in any medium for
                               any purpose without fee or royalty provided that you include this IPR, License and Distribution
                               notice in its entirety on ALL copies, or portions thereof, that you make and you complete a valid
                               profile registration with IMS GLC and receive an email from IMS GLC granting the license. To register, follow
                               the instructions on the IMS GLC website: http://www.imsglobal.org/profile/. Once registered you are
                               granted permission to transfer unlimited distribution rights of the derived work for the purposes of
                               third-party or other distribution of your product or service that incorporates the derived work as long
                               as this IPR, License and Distribution notice remains in place in its entirety.

                            The limited permissions granted above are perpetual and will not be revoked by IMS GLC or its
                            successors or assigns.

                            THIS SPECIFICATION IS BEING OFFERED WITHOUT ANY WARRANTY WHATSOEVER, AND IN PARTICULAR, ANY WARRANTY OF NONINFRINGEMENT IS
                            EXPRESSLY DISCLAIMED. ANY USE OF THIS SPECIFICATION SHALL BE MADE ENTIRELY AT THE IMPLEMENTERS OWN RISK, AND NEITHER THE CONSORTIUM
                            NOR ANY OF ITS MEMBERS OR SUBMITTERS, SHALL HAVE ANY LIABILITY WHATSOEVER TO ANY IMPLEMENTER OR THIRD PARTY FOR ANY DAMAGES OF
                            ANY NATURE WHATSOEVER, DIRECTLY OR INDIRECTLY, ARISING FROM THE USE OF THIS SPECIFICATION.

            UML Source Service File Information
            Choreography:     Sync
            Status Object:    StatusInfo

            Source UML File Information
            The source file information must be supplied as an XMI file (without diagram layout information).
            The supported UML authoring tools are:
            (a) Poseidon – v6 (and later)

            Source XSLT File Information
            XSL Generator:    UMLtoWSDLTransformv0p9p5.xsl
            XSLT Processor:   Xalan
            Release:          1.0 Beta 4
            Date:             31st March, 2011

            IMS GLC Auto-generation Binding Tool-kit (I-BAT)
            This file was auto-generated using the IMS GLC Binding Auto-generation Tool-kit (I-BAT).  While every
            attempt has been made to ensure that this tool auto-generates the files correctly, users should be aware
            that this is an experimental tool.  Permission is given to make use of this tool.  IMS GLC makes no
            claim on the materials created by third party users of this tool.  Details on how to use this tool
            are contained in the IMS GLC "I-BAT" Documentation available at the IMS GLC web-site.

            Tool Copyright:  2005-2011 (c) IMS Global Learning Consortium Inc.  All Rights Reserved.
Properties
attribute form default: unqualified
element form default: qualified
version: IMS CMS 1.0
[ top ]
Element cms:imsx_codeMajor
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#imsx_CodeMajor.Type
Type cms:imsx_CodeMajor.Type
Properties
content: simple
Facets
enumeration success
enumeration processing
enumeration failure
enumeration unsupported
Used by
Source
<xs:element name="imsx_codeMajor" type="cms:imsx_CodeMajor.Type"/>
[ top ]
Element cms:imsx_severity
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#imsx_Severity.Type
Type cms:imsx_Severity.Type
Properties
content: simple
Facets
enumeration status
enumeration warning
enumeration error
Used by
Source
<xs:element name="imsx_severity" type="cms:imsx_Severity.Type"/>
[ top ]
Element cms:imsx_codeMinorFieldValue
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#imsx_CodeMinorValue.Type
Type cms:imsx_CodeMinorValue.Type
Properties
content: simple
Facets
enumeration fullsuccess
enumeration createsuccess
enumeration nosourcedids
enumeration idallocfail
enumeration overflowfail
enumeration idallocinusefail
enumeration invaliddata
enumeration incompletedata
enumeration partialdatastorage
enumeration unknownobject
enumeration deletefailure
enumeration targetreadfailure
enumeration toomuchdata
enumeration savepointsyncerror
enumeration savepointerror
enumeration unknownquery
enumeration unknownvocabulary
enumeration unknownmdvocabulary
enumeration targetisbusy
enumeration unknownextension
enumeration unauthorizedrequest
enumeration linkfailure
enumeration unsupportedLIS
enumeration unsupportedLISoperation
Used by
Source
<xs:element name="imsx_codeMinorFieldValue" type="cms:imsx_CodeMinorValue.Type"/>
[ top ]
Element cms:imsx_version
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#GWSVersionValue.Type
Type cms:GWSVersionValue.Type
Properties
content: simple
Facets
enumeration V1.0
Used by
Source
<xs:element name="imsx_version" type="cms:GWSVersionValue.Type"/>
[ top ]
Element cms:mediamode
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#MediaMode.Type
Type cms:MediaMode.Type
Properties
content: simple
Facets
enumeration uri
enumeration entityref
enumeration base64
Used by
Source
<xs:element name="mediamode" type="cms:MediaMode.Type"/>
[ top ]
Element cms:contentRefType
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#ContentRefType.Type
Type cms:ContentRefType.Type
Properties
content: simple
Facets
enumeration text
enumeration image
enumeration audio
enumeration video
enumeration application
enumeration applet
Used by
Source
<xs:element name="contentRefType" type="cms:ContentRefType.Type"/>
[ top ]
Element cms:adminPeriod
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Type xs:normalizedString
Properties
content: simple
Used by
Complex Type cms:TimeFrame.Type
Source
<xs:element name="adminPeriod" type="xs:normalizedString"/>
[ top ]
Element cms:begin
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Type xs:dateTime
Properties
content: simple
Used by
Complex Type cms:TimeFrame.Type
Source
<xs:element name="begin" type="xs:dateTime"/>
[ top ]
Element cms:end
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Type xs:dateTime
Properties
content: simple
Used by
Complex Type cms:TimeFrame.Type
Source
<xs:element name="end" type="xs:dateTime"/>
[ top ]
Element cms:enrollAccept
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Type xs:boolean
Properties
content: simple
Used by
Complex Type cms:EnrollControl.Type
Source
<xs:element name="enrollAccept" type="xs:boolean"/>
[ top ]
Element cms:enrollAllowed
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Type xs:boolean
Properties
content: simple
Used by
Complex Type cms:EnrollControl.Type
Source
<xs:element name="enrollAllowed" type="xs:boolean"/>
[ top ]
Element cms:extensionNameVocabulary
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Type xs:anyURI
Properties
content: simple
Used by
Complex Type cms:IMSExtension.Type
Source
<xs:element name="extensionNameVocabulary" type="xs:anyURI"/>
[ top ]
Element cms:extensionTypeVocabulary
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Type xs:anyURI
Properties
content: simple
Used by
Complex Type cms:IMSExtension.Type
Source
<xs:element name="extensionTypeVocabulary" type="xs:anyURI"/>
[ top ]
Element cms:fieldName
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Type xs:normalizedString
Properties
content: simple
Used by
Source
<xs:element name="fieldName" type="xs:normalizedString"/>
[ top ]
Element cms:fieldType
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Type xs:normalizedString
Properties
content: simple
Used by
Source
<xs:element name="fieldType" type="xs:normalizedString"/>
[ top ]
Element cms:fieldValue
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Type xs:normalizedString
Properties
content: simple
Used by
Source
<xs:element name="fieldValue" type="xs:normalizedString"/>
[ top ]
Element cms:imsx_codeMinorFieldName
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Type xs:string
Properties
content: simple
default: TargetEndSystem
Used by
Source
<xs:element name="imsx_codeMinorFieldName" type="xs:string" default="TargetEndSystem"/>
[ top ]
Element cms:imsx_description
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Source
<xs:element name="imsx_description" type="xs:string"/>
[ top ]
Element cms:imsx_messageIdentifier
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Source
<xs:element name="imsx_messageIdentifier" type="xs:string"/>
[ top ]
Element cms:imsx_messageRefIdentifier
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Source
<xs:element name="imsx_messageRefIdentifier" type="xs:string"/>
[ top ]
Element cms:imsx_operationRefIdentifier
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Source
<xs:element name="imsx_operationRefIdentifier" type="xs:string"/>
[ top ]
Element cms:language
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Type xs:normalizedString
Properties
content: simple
Used by
Complex Type cms:Text.Type
Source
<xs:element name="language" type="xs:normalizedString"/>
[ top ]
Element cms:maxNumberofStudents
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Type xs:integer
Properties
content: simple
Used by
Complex Type cms:CourseSection.Type
Source
<xs:element name="maxNumberofStudents" type="xs:integer"/>
[ top ]
Element cms:metadataNameVocabulary
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Type xs:anyURI
Properties
content: simple
Used by
Complex Type cms:Metadata.Type
Source
<xs:element name="metadataNameVocabulary" type="xs:anyURI"/>
[ top ]
Element cms:metadataTypeVocabulary
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Type xs:anyURI
Properties
content: simple
Used by
Complex Type cms:Metadata.Type
Source
<xs:element name="metadataTypeVocabulary" type="xs:anyURI"/>
[ top ]
Element cms:mimeType
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Type xs:normalizedString
Properties
content: simple
Used by
Source
<xs:element name="mimeType" type="xs:normalizedString"/>
[ top ]
Element cms:numberofStudents
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Type xs:integer
Properties
content: simple
Used by
Complex Type cms:CourseSection.Type
Source
<xs:element name="numberofStudents" type="xs:integer"/>
[ top ]
Element cms:refAgentInstanceID
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Type xs:normalizedString
Properties
content: simple
Used by
Complex Type cms:SourcedGUID.Type
Source
<xs:element name="refAgentInstanceID" type="xs:normalizedString"/>
[ top ]
Element cms:restrict
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Type xs:boolean
Properties
content: simple
Used by
Complex Type cms:TimeFrame.Type
Source
<xs:element name="restrict" type="xs:boolean"/>
[ top ]
Element cms:textString
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Type xs:string
Properties
content: simple
Used by
Complex Type cms:Text.Type
Source
<xs:element name="textString" type="xs:string"/>
[ top ]

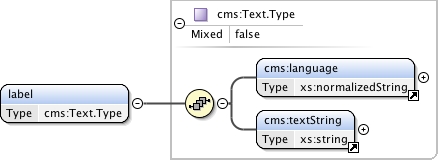

Element cms:label
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#language CourseManagementServiceSyncXSD.tmp#textString CourseManagementServiceSyncXSD.tmp#Text.Type
Type cms:Text.Type
Properties
content: complex
mixed: false
Used by
Model cms:language , cms:textString
Children cms:language, cms:textString
Instance
<cms:label>
  <cms:language>{1,1}</cms:language>
  <cms:textString>{1,1}</cms:textString>
</cms:label>
Source
<xs:element name="label" type="cms:Text.Type"/>
[ top ]
Element cms:title
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#language CourseManagementServiceSyncXSD.tmp#textString CourseManagementServiceSyncXSD.tmp#Text.Type
Type cms:Text.Type
Properties
content: complex
mixed: false
Used by
Model cms:language , cms:textString
Children cms:language, cms:textString
Instance
<cms:title>
  <cms:language>{1,1}</cms:language>
  <cms:textString>{1,1}</cms:textString>
</cms:title>
Source
<xs:element name="title" type="cms:Text.Type"/>
[ top ]
Element cms:parentTemplateId
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#GUID.Type
Type cms:GUID.Type
Properties
content: simple
Used by
Source
<xs:element name="parentTemplateId" type="cms:GUID.Type"/>
[ top ]

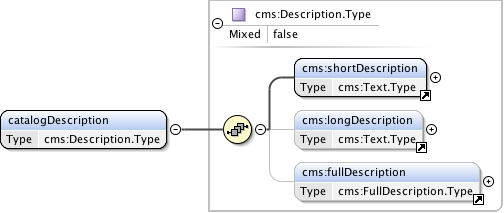

Element cms:catalogDescription
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#shortDescription CourseManagementServiceSyncXSD.tmp#longDescription CourseManagementServiceSyncXSD.tmp#fullDescription CourseManagementServiceSyncXSD.tmp#Description.Type
Type cms:Description.Type
Properties
content: complex
mixed: false
Used by
Model cms:shortDescription , cms:longDescription{0,1} , cms:fullDescription{0,1}
Children cms:fullDescription, cms:longDescription, cms:shortDescription
Instance
<cms:catalogDescription>
  <cms:shortDescription>{1,1}</cms:shortDescription>
  <cms:longDescription>{0,1}</cms:longDescription>
  <cms:fullDescription>{0,1}</cms:fullDescription>
</cms:catalogDescription>
Source
<xs:element name="catalogDescription" type="cms:Description.Type"/>
[ top ]

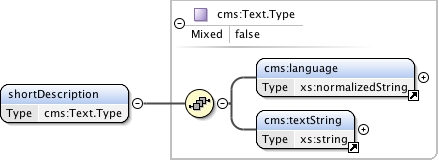

Element cms:shortDescription
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#language CourseManagementServiceSyncXSD.tmp#textString CourseManagementServiceSyncXSD.tmp#Text.Type
Type cms:Text.Type
Properties
content: complex
mixed: false
Used by
Complex Type cms:Description.Type
Model cms:language , cms:textString
Children cms:language, cms:textString
Instance
<cms:shortDescription>
  <cms:language>{1,1}</cms:language>
  <cms:textString>{1,1}</cms:textString>
</cms:shortDescription>
Source
<xs:element name="shortDescription" type="cms:Text.Type"/>
[ top ]
Element cms:longDescription
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#language CourseManagementServiceSyncXSD.tmp#textString CourseManagementServiceSyncXSD.tmp#Text.Type
Type cms:Text.Type
Properties
content: complex
mixed: false
Used by
Complex Type cms:Description.Type
Model cms:language , cms:textString
Children cms:language, cms:textString
Instance
<cms:longDescription>
  <cms:language>{1,1}</cms:language>
  <cms:textString>{1,1}</cms:textString>
</cms:longDescription>
Source
<xs:element name="longDescription" type="cms:Text.Type"/>
[ top ]
Element cms:fullDescription
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#mediamode CourseManagementServiceSyncXSD.tmp#contentRefType CourseManagementServiceSyncXSD.tmp#mimeType CourseManagementServiceSyncXSD.tmp#descriptionText CourseManagementServiceSyncXSD.tmp#FullDescription.Type
Type cms:FullDescription.Type
Properties
content: complex
mixed: false
Used by
Complex Type cms:Description.Type
Model cms:mediamode , cms:contentRefType , cms:mimeType , cms:descriptionText
Children cms:contentRefType, cms:descriptionText, cms:mediamode, cms:mimeType
Instance
<cms:fullDescription>
  <cms:mediamode>{1,1}</cms:mediamode>
  <cms:contentRefType>{1,1}</cms:contentRefType>
  <cms:mimeType>{1,1}</cms:mimeType>
  <cms:descriptionText>{1,1}</cms:descriptionText>
</cms:fullDescription>
Source
<xs:element name="fullDescription" type="cms:FullDescription.Type"/>
[ top ]
Element cms:descriptionText
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#language CourseManagementServiceSyncXSD.tmp#textString CourseManagementServiceSyncXSD.tmp#Text.Type
Type cms:Text.Type
Properties
content: complex
mixed: false
Used by
Model cms:language , cms:textString
Children cms:language, cms:textString
Instance
<cms:descriptionText>
  <cms:language>{1,1}</cms:language>
  <cms:textString>{1,1}</cms:textString>
</cms:descriptionText>
Source
<xs:element name="descriptionText" type="cms:Text.Type"/>
[ top ]
Element cms:status
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Type xs:normalizedString
Properties
content: simple
Used by
Source
<xs:element name="status" type="xs:normalizedString"/>
[ top ]

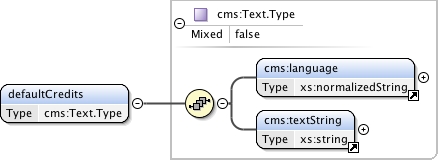

Element cms:defaultCredits
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#language CourseManagementServiceSyncXSD.tmp#textString CourseManagementServiceSyncXSD.tmp#Text.Type
Type cms:Text.Type
Properties
content: complex
mixed: false
Used by
Model cms:language , cms:textString
Children cms:language, cms:textString
Instance
<cms:defaultCredits>
  <cms:language>{1,1}</cms:language>
  <cms:textString>{1,1}</cms:textString>
</cms:defaultCredits>
Source
<xs:element name="defaultCredits" type="cms:Text.Type"/>
[ top ]
Element cms:academicSession
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#language CourseManagementServiceSyncXSD.tmp#textString CourseManagementServiceSyncXSD.tmp#Text.Type
Type cms:Text.Type
Properties
content: complex
mixed: false
Used by
Model cms:language , cms:textString
Children cms:language, cms:textString
Instance
<cms:academicSession>
  <cms:language>{1,1}</cms:language>
  <cms:textString>{1,1}</cms:textString>
</cms:academicSession>
Source
<xs:element name="academicSession" type="cms:Text.Type"/>
[ top ]

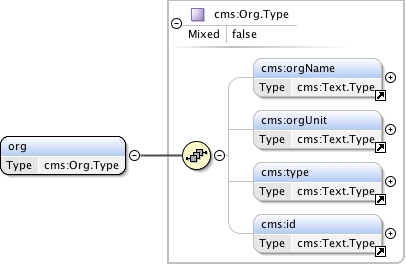

Element cms:org
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#orgName CourseManagementServiceSyncXSD.tmp#orgUnit CourseManagementServiceSyncXSD.tmp#type CourseManagementServiceSyncXSD.tmp#id CourseManagementServiceSyncXSD.tmp#Org.Type
Type cms:Org.Type
Properties
content: complex
mixed: false
Used by
Model cms:orgName{0,1} , cms:orgUnit{0,1} , cms:type{0,1} , cms:id{0,1}
Children cms:id, cms:orgName, cms:orgUnit, cms:type
Instance
<cms:org>
  <cms:orgName>{0,1}</cms:orgName>
  <cms:orgUnit>{0,1}</cms:orgUnit>
  <cms:type>{0,1}</cms:type>
  <cms:id>{0,1}</cms:id>
</cms:org>
Source
<xs:element name="org" type="cms:Org.Type"/>
[ top ]
Element cms:orgName
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#language CourseManagementServiceSyncXSD.tmp#textString CourseManagementServiceSyncXSD.tmp#Text.Type
Type cms:Text.Type
Properties
content: complex
mixed: false
Used by
Complex Type cms:Org.Type
Model cms:language , cms:textString
Children cms:language, cms:textString
Instance
<cms:orgName>
  <cms:language>{1,1}</cms:language>
  <cms:textString>{1,1}</cms:textString>
</cms:orgName>
Source
<xs:element name="orgName" type="cms:Text.Type"/>
[ top ]
Element cms:orgUnit
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#language CourseManagementServiceSyncXSD.tmp#textString CourseManagementServiceSyncXSD.tmp#Text.Type
Type cms:Text.Type
Properties
content: complex
mixed: false
Used by
Complex Type cms:Org.Type
Model cms:language , cms:textString
Children cms:language, cms:textString
Instance
<cms:orgUnit>
  <cms:language>{1,1}</cms:language>
  <cms:textString>{1,1}</cms:textString>
</cms:orgUnit>
Source
<xs:element name="orgUnit" type="cms:Text.Type"/>
[ top ]
Element cms:type
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#language CourseManagementServiceSyncXSD.tmp#textString CourseManagementServiceSyncXSD.tmp#Text.Type
Type cms:Text.Type
Properties
content: complex
mixed: false
Used by
Complex Type cms:Org.Type
Model cms:language , cms:textString
Children cms:language, cms:textString
Instance
<cms:type>
  <cms:language>{1,1}</cms:language>
  <cms:textString>{1,1}</cms:textString>
</cms:type>
Source
<xs:element name="type" type="cms:Text.Type"/>
[ top ]
Element cms:id
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#language CourseManagementServiceSyncXSD.tmp#textString CourseManagementServiceSyncXSD.tmp#Text.Type
Type cms:Text.Type
Properties
content: complex
mixed: false
Used by
Complex Type cms:Org.Type
Model cms:language , cms:textString
Children cms:language, cms:textString
Instance
<cms:id>
  <cms:language>{1,1}</cms:language>
  <cms:textString>{1,1}</cms:textString>
</cms:id>
Source
<xs:element name="id" type="cms:Text.Type"/>
[ top ]

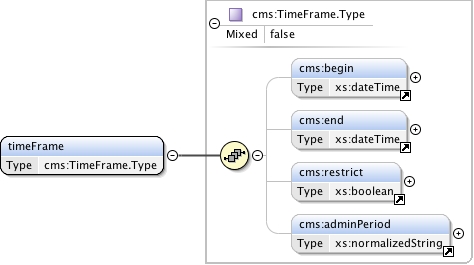

Element cms:timeFrame
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#begin CourseManagementServiceSyncXSD.tmp#end CourseManagementServiceSyncXSD.tmp#restrict CourseManagementServiceSyncXSD.tmp#adminPeriod CourseManagementServiceSyncXSD.tmp#TimeFrame.Type
Type cms:TimeFrame.Type
Properties
content: complex
mixed: false
Used by
Model cms:begin{0,1} , cms:end{0,1} , cms:restrict{0,1} , cms:adminPeriod{0,1}
Children cms:adminPeriod, cms:begin, cms:end, cms:restrict
Instance
<cms:timeFrame>
  <cms:begin>{0,1}</cms:begin>
  <cms:end>{0,1}</cms:end>
  <cms:restrict>{0,1}</cms:restrict>
  <cms:adminPeriod>{0,1}</cms:adminPeriod>
</cms:timeFrame>
Source
<xs:element name="timeFrame" type="cms:TimeFrame.Type"/>
[ top ]

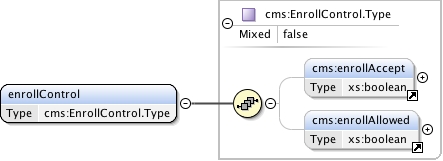

Element cms:enrollControl
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#enrollAccept CourseManagementServiceSyncXSD.tmp#enrollAllowed CourseManagementServiceSyncXSD.tmp#EnrollControl.Type
Type cms:EnrollControl.Type
Properties
content: complex
mixed: false
Used by
Model cms:enrollAccept{0,1} , cms:enrollAllowed{0,1}
Children cms:enrollAccept, cms:enrollAllowed
Instance
<cms:enrollControl>
  <cms:enrollAccept>{0,1}</cms:enrollAccept>
  <cms:enrollAllowed>{0,1}</cms:enrollAllowed>
</cms:enrollControl>
Source
<xs:element name="enrollControl" type="cms:EnrollControl.Type"/>
[ top ]
Element cms:dataSource
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#GUID.Type
Type cms:GUID.Type
Properties
content: simple
Used by
Source
<xs:element name="dataSource" type="cms:GUID.Type"/>
[ top ]
Element cms:recordInfo
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#metadataNameVocabulary CourseManagementServiceSyncXSD.tmp#metadataTypeVocabulary CourseManagementServiceSyncXSD.tmp#extensionField CourseManagementServiceSyncXSD.tmp#Metadata.Type

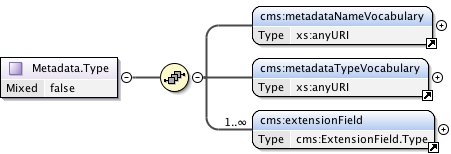

Type cms:Metadata.Type
Properties
content: complex
mixed: false
Used by
Model cms:metadataNameVocabulary , cms:metadataTypeVocabulary , cms:extensionField+
Children cms:extensionField, cms:metadataNameVocabulary, cms:metadataTypeVocabulary
Instance
<cms:recordInfo>
  <cms:metadataNameVocabulary>{1,1}</cms:metadataNameVocabulary>
  <cms:metadataTypeVocabulary>{1,1}</cms:metadataTypeVocabulary>
  <cms:extensionField>{1,unbounded}</cms:extensionField>
</cms:recordInfo>
Source
<xs:element name="recordInfo" type="cms:Metadata.Type"/>
[ top ]

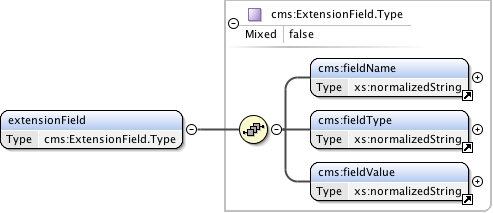

Element cms:extensionField
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#fieldName CourseManagementServiceSyncXSD.tmp#fieldType CourseManagementServiceSyncXSD.tmp#fieldValue CourseManagementServiceSyncXSD.tmp#ExtensionField.Type
Type cms:ExtensionField.Type
Properties
content: complex
mixed: false
Used by
Model cms:fieldName , cms:fieldType , cms:fieldValue
Children cms:fieldName, cms:fieldType, cms:fieldValue
Instance
<cms:extensionField>
  <cms:fieldName>{1,1}</cms:fieldName>
  <cms:fieldType>{1,1}</cms:fieldType>
  <cms:fieldValue>{1,1}</cms:fieldValue>
</cms:extensionField>
Source
<xs:element name="extensionField" type="cms:ExtensionField.Type"/>
[ top ]

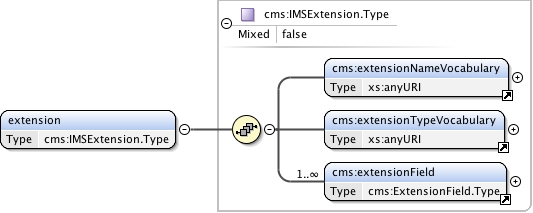

Element cms:extension
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#extensionNameVocabulary CourseManagementServiceSyncXSD.tmp#extensionTypeVocabulary CourseManagementServiceSyncXSD.tmp#extensionField CourseManagementServiceSyncXSD.tmp#IMSExtension.Type
Type cms:IMSExtension.Type
Properties
content: complex
mixed: false
Used by
Model cms:extensionNameVocabulary , cms:extensionTypeVocabulary , cms:extensionField+
Children cms:extensionField, cms:extensionNameVocabulary, cms:extensionTypeVocabulary
Instance
<cms:extension>
  <cms:extensionNameVocabulary>{1,1}</cms:extensionNameVocabulary>
  <cms:extensionTypeVocabulary>{1,1}</cms:extensionTypeVocabulary>
  <cms:extensionField>{1,unbounded}</cms:extensionField>
</cms:extension>
Source
<xs:element name="extension" type="cms:IMSExtension.Type"/>
[ top ]
Element cms:sourcedGUID
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#refAgentInstanceID CourseManagementServiceSyncXSD.tmp#sourcedId CourseManagementServiceSyncXSD.tmp#SourcedGUID.Type
Type cms:SourcedGUID.Type
Properties
content: complex
mixed: false
Used by
Model cms:refAgentInstanceID{0,1} , cms:sourcedId
Children cms:refAgentInstanceID, cms:sourcedId
Instance
<cms:sourcedGUID>
  <cms:refAgentInstanceID>{0,1}</cms:refAgentInstanceID>
  <cms:sourcedId>{1,1}</cms:sourcedId>
</cms:sourcedGUID>
Source
<xs:element name="sourcedGUID" type="cms:SourcedGUID.Type"/>
[ top ]
Element cms:sourcedId
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#GUID.Type
Type cms:GUID.Type
Properties
content: simple
Used by
Source
<xs:element name="sourcedId" type="cms:GUID.Type"/>
[ top ]

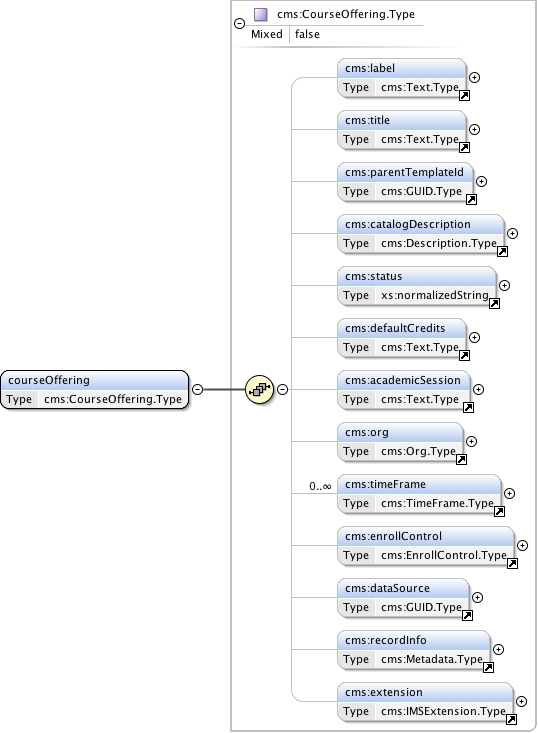

Element cms:courseOffering
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#label CourseManagementServiceSyncXSD.tmp#title CourseManagementServiceSyncXSD.tmp#parentTemplateId CourseManagementServiceSyncXSD.tmp#catalogDescription CourseManagementServiceSyncXSD.tmp#status CourseManagementServiceSyncXSD.tmp#defaultCredits CourseManagementServiceSyncXSD.tmp#academicSession CourseManagementServiceSyncXSD.tmp#org CourseManagementServiceSyncXSD.tmp#timeFrame CourseManagementServiceSyncXSD.tmp#enrollControl CourseManagementServiceSyncXSD.tmp#dataSource CourseManagementServiceSyncXSD.tmp#recordInfo CourseManagementServiceSyncXSD.tmp#extension CourseManagementServiceSyncXSD.tmp#CourseOffering.Type
Type cms:CourseOffering.Type
Properties
content: complex
mixed: false
Used by
Model cms:label{0,1} , cms:title{0,1} , cms:parentTemplateId{0,1} , cms:catalogDescription{0,1} , cms:status{0,1} , cms:defaultCredits{0,1} , cms:academicSession{0,1} , cms:org{0,1} , cms:timeFrame* , cms:enrollControl{0,1} , cms:dataSource{0,1} , cms:recordInfo{0,1} , cms:extension{0,1}
Children cms:academicSession, cms:catalogDescription, cms:dataSource, cms:defaultCredits, cms:enrollControl, cms:extension, cms:label, cms:org, cms:parentTemplateId, cms:recordInfo, cms:status, cms:timeFrame, cms:title
Instance
<cms:courseOffering>
  <cms:label>{0,1}</cms:label>
  <cms:title>{0,1}</cms:title>
  <cms:parentTemplateId>{0,1}</cms:parentTemplateId>
  <cms:catalogDescription>{0,1}</cms:catalogDescription>
  <cms:status>{0,1}</cms:status>
  <cms:defaultCredits>{0,1}</cms:defaultCredits>
  <cms:academicSession>{0,1}</cms:academicSession>
  <cms:org>{0,1}</cms:org>
  <cms:timeFrame>{0,unbounded}</cms:timeFrame>
  <cms:enrollControl>{0,1}</cms:enrollControl>
  <cms:dataSource>{0,1}</cms:dataSource>
  <cms:recordInfo>{0,1}</cms:recordInfo>
  <cms:extension>{0,1}</cms:extension>
</cms:courseOffering>
Source
<xs:element name="courseOffering" type="cms:CourseOffering.Type"/>
[ top ]
Element cms:courseOfferingRecord
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedGUID CourseManagementServiceSyncXSD.tmp#courseOffering CourseManagementServiceSyncXSD.tmp#CourseOfferingRecord.Type
Type cms:CourseOfferingRecord.Type
Properties
content: complex
mixed: false
Used by
Model cms:sourcedGUID , cms:courseOffering
Children cms:courseOffering, cms:sourcedGUID
Instance
<cms:courseOfferingRecord>
  <cms:sourcedGUID>{1,1}</cms:sourcedGUID>
  <cms:courseOffering>{1,1}</cms:courseOffering>
</cms:courseOfferingRecord>
Source
<xs:element name="courseOfferingRecord" type="cms:CourseOfferingRecord.Type"/>
[ top ]
Element cms:parentOfferingId
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#GUID.Type
Type cms:GUID.Type
Properties
content: simple
Used by
Complex Type cms:CourseSection.Type
Source
<xs:element name="parentOfferingId" type="cms:GUID.Type"/>
[ top ]

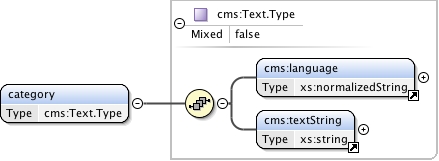

Element cms:category
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#language CourseManagementServiceSyncXSD.tmp#textString CourseManagementServiceSyncXSD.tmp#Text.Type
Type cms:Text.Type
Properties
content: complex
mixed: false
Used by
Complex Type cms:CourseSection.Type
Model cms:language , cms:textString
Children cms:language, cms:textString
Instance
<cms:category>
  <cms:language>{1,1}</cms:language>
  <cms:textString>{1,1}</cms:textString>
</cms:category>
Source
<xs:element name="category" type="cms:Text.Type"/>
[ top ]

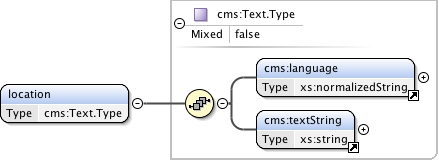

Element cms:location
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#language CourseManagementServiceSyncXSD.tmp#textString CourseManagementServiceSyncXSD.tmp#Text.Type
Type cms:Text.Type
Properties
content: complex
mixed: false
Used by
Complex Type cms:CourseSection.Type
Model cms:language , cms:textString
Children cms:language, cms:textString
Instance
<cms:location>
  <cms:language>{1,1}</cms:language>
  <cms:textString>{1,1}</cms:textString>
</cms:location>
Source
<xs:element name="location" type="cms:Text.Type"/>
[ top ]

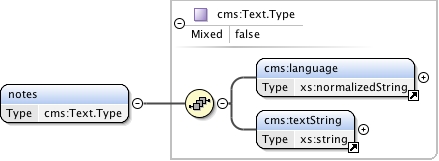

Element cms:notes
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#language CourseManagementServiceSyncXSD.tmp#textString CourseManagementServiceSyncXSD.tmp#Text.Type
Type cms:Text.Type
Properties
content: complex
mixed: false
Used by
Complex Type cms:CourseSection.Type
Model cms:language , cms:textString
Children cms:language, cms:textString
Instance
<cms:notes>
  <cms:language>{1,1}</cms:language>
  <cms:textString>{1,1}</cms:textString>
</cms:notes>
Source
<xs:element name="notes" type="cms:Text.Type"/>
[ top ]
Element cms:meeting
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#language CourseManagementServiceSyncXSD.tmp#textString CourseManagementServiceSyncXSD.tmp#Text.Type
Type cms:Text.Type
Properties
content: complex
mixed: false
Used by
Complex Type cms:CourseSection.Type
Model cms:language , cms:textString
Children cms:language, cms:textString
Instance
<cms:meeting>
  <cms:language>{1,1}</cms:language>
  <cms:textString>{1,1}</cms:textString>
</cms:meeting>
Source
<xs:element name="meeting" type="cms:Text.Type"/>
[ top ]

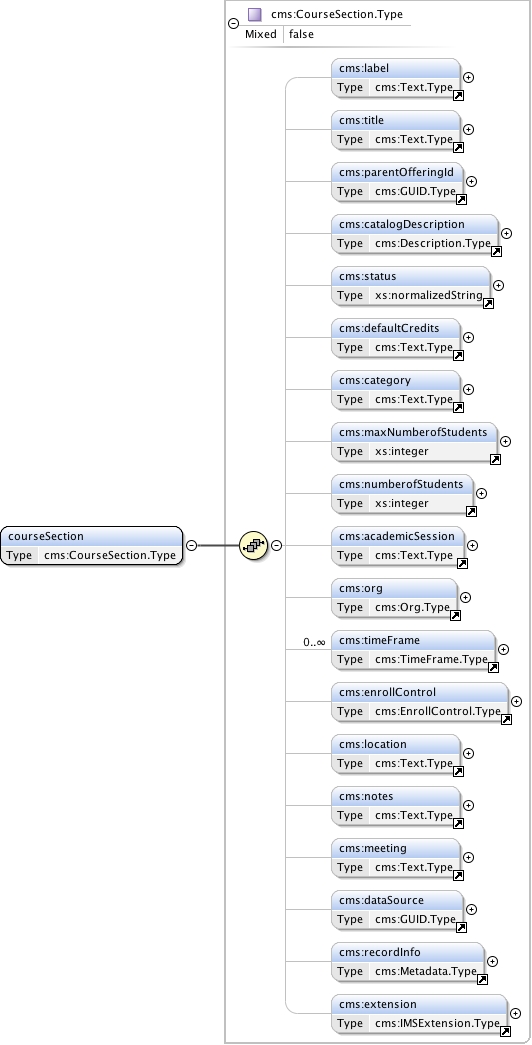

Element cms:courseSection
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#label CourseManagementServiceSyncXSD.tmp#title CourseManagementServiceSyncXSD.tmp#parentOfferingId CourseManagementServiceSyncXSD.tmp#catalogDescription CourseManagementServiceSyncXSD.tmp#status CourseManagementServiceSyncXSD.tmp#defaultCredits CourseManagementServiceSyncXSD.tmp#category CourseManagementServiceSyncXSD.tmp#maxNumberofStudents CourseManagementServiceSyncXSD.tmp#numberofStudents CourseManagementServiceSyncXSD.tmp#academicSession CourseManagementServiceSyncXSD.tmp#org CourseManagementServiceSyncXSD.tmp#timeFrame CourseManagementServiceSyncXSD.tmp#enrollControl CourseManagementServiceSyncXSD.tmp#location CourseManagementServiceSyncXSD.tmp#notes CourseManagementServiceSyncXSD.tmp#meeting CourseManagementServiceSyncXSD.tmp#dataSource CourseManagementServiceSyncXSD.tmp#recordInfo CourseManagementServiceSyncXSD.tmp#extension CourseManagementServiceSyncXSD.tmp#CourseSection.Type
Type cms:CourseSection.Type
Properties
content: complex
mixed: false
Used by
Model cms:label{0,1} , cms:title{0,1} , cms:parentOfferingId{0,1} , cms:catalogDescription{0,1} , cms:status{0,1} , cms:defaultCredits{0,1} , cms:category{0,1} , cms:maxNumberofStudents{0,1} , cms:numberofStudents{0,1} , cms:academicSession{0,1} , cms:org{0,1} , cms:timeFrame* , cms:enrollControl{0,1} , cms:location{0,1} , cms:notes{0,1} , cms:meeting{0,1} , cms:dataSource{0,1} , cms:recordInfo{0,1} , cms:extension{0,1}
Children cms:academicSession, cms:catalogDescription, cms:category, cms:dataSource, cms:defaultCredits, cms:enrollControl, cms:extension, cms:label, cms:location, cms:maxNumberofStudents, cms:meeting, cms:notes, cms:numberofStudents, cms:org, cms:parentOfferingId, cms:recordInfo, cms:status, cms:timeFrame, cms:title
Instance
<cms:courseSection>
  <cms:label>{0,1}</cms:label>
  <cms:title>{0,1}</cms:title>
  <cms:parentOfferingId>{0,1}</cms:parentOfferingId>
  <cms:catalogDescription>{0,1}</cms:catalogDescription>
  <cms:status>{0,1}</cms:status>
  <cms:defaultCredits>{0,1}</cms:defaultCredits>
  <cms:category>{0,1}</cms:category>
  <cms:maxNumberofStudents>{0,1}</cms:maxNumberofStudents>
  <cms:numberofStudents>{0,1}</cms:numberofStudents>
  <cms:academicSession>{0,1}</cms:academicSession>
  <cms:org>{0,1}</cms:org>
  <cms:timeFrame>{0,unbounded}</cms:timeFrame>
  <cms:enrollControl>{0,1}</cms:enrollControl>
  <cms:location>{0,1}</cms:location>
  <cms:notes>{0,1}</cms:notes>
  <cms:meeting>{0,1}</cms:meeting>
  <cms:dataSource>{0,1}</cms:dataSource>
  <cms:recordInfo>{0,1}</cms:recordInfo>
  <cms:extension>{0,1}</cms:extension>
</cms:courseSection>
Source
<xs:element name="courseSection" type="cms:CourseSection.Type"/>
[ top ]
Element cms:courseSectionRecord
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedGUID CourseManagementServiceSyncXSD.tmp#courseSection CourseManagementServiceSyncXSD.tmp#CourseSectionRecord.Type
Type cms:CourseSectionRecord.Type
Properties
content: complex
mixed: false
Used by
Model cms:sourcedGUID , cms:courseSection
Children cms:courseSection, cms:sourcedGUID
Instance
<cms:courseSectionRecord>
  <cms:sourcedGUID>{1,1}</cms:sourcedGUID>
  <cms:courseSection>{1,1}</cms:courseSection>
</cms:courseSectionRecord>
Source
<xs:element name="courseSectionRecord" type="cms:CourseSectionRecord.Type"/>
[ top ]
Element cms:courseNumber
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#language CourseManagementServiceSyncXSD.tmp#textString CourseManagementServiceSyncXSD.tmp#Text.Type
Type cms:Text.Type
Properties
content: complex
mixed: false
Used by
Model cms:language , cms:textString
Children cms:language, cms:textString
Instance
<cms:courseNumber>
  <cms:language>{1,1}</cms:language>
  <cms:textString>{1,1}</cms:textString>
</cms:courseNumber>
Source
<xs:element name="courseNumber" type="cms:Text.Type"/>
[ top ]

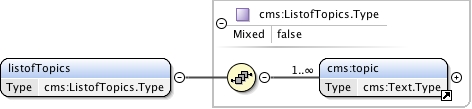

Element cms:listofTopics
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#topic CourseManagementServiceSyncXSD.tmp#ListofTopics.Type
Type cms:ListofTopics.Type
Properties
content: complex
mixed: false
Used by
Model cms:topic+
Children cms:topic
Instance
<cms:listofTopics>
  <cms:topic>{1,unbounded}</cms:topic>
</cms:listofTopics>
Source
<xs:element name="listofTopics" type="cms:ListofTopics.Type"/>
[ top ]
Element cms:topic
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#language CourseManagementServiceSyncXSD.tmp#textString CourseManagementServiceSyncXSD.tmp#Text.Type
Type cms:Text.Type
Properties
content: complex
mixed: false
Used by
Complex Type cms:ListofTopics.Type
Model cms:language , cms:textString
Children cms:language, cms:textString
Instance
<cms:topic>
  <cms:language>{1,1}</cms:language>
  <cms:textString>{1,1}</cms:textString>
</cms:topic>
Source
<xs:element name="topic" type="cms:Text.Type"/>
[ top ]

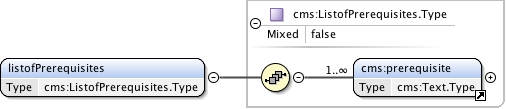

Element cms:listofPrerequisites
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#prerequisite CourseManagementServiceSyncXSD.tmp#ListofPrerequisites.Type
Type cms:ListofPrerequisites.Type
Properties
content: complex
mixed: false
Used by
Model cms:prerequisite+
Children cms:prerequisite
Instance
<cms:listofPrerequisites>
  <cms:prerequisite>{1,unbounded}</cms:prerequisite>
</cms:listofPrerequisites>
Source
<xs:element name="listofPrerequisites" type="cms:ListofPrerequisites.Type"/>
[ top ]

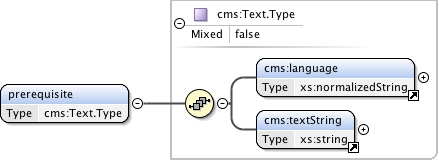

Element cms:prerequisite
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#language CourseManagementServiceSyncXSD.tmp#textString CourseManagementServiceSyncXSD.tmp#Text.Type
Type cms:Text.Type
Properties
content: complex
mixed: false
Used by
Model cms:language , cms:textString
Children cms:language, cms:textString
Instance
<cms:prerequisite>
  <cms:language>{1,1}</cms:language>
  <cms:textString>{1,1}</cms:textString>
</cms:prerequisite>
Source
<xs:element name="prerequisite" type="cms:Text.Type"/>
[ top ]

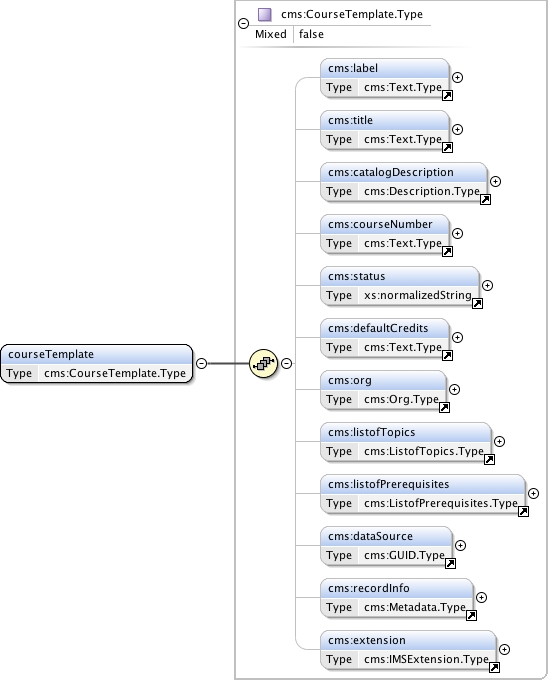

Element cms:courseTemplate
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#label CourseManagementServiceSyncXSD.tmp#title CourseManagementServiceSyncXSD.tmp#catalogDescription CourseManagementServiceSyncXSD.tmp#courseNumber CourseManagementServiceSyncXSD.tmp#status CourseManagementServiceSyncXSD.tmp#defaultCredits CourseManagementServiceSyncXSD.tmp#org CourseManagementServiceSyncXSD.tmp#listofTopics CourseManagementServiceSyncXSD.tmp#listofPrerequisites CourseManagementServiceSyncXSD.tmp#dataSource CourseManagementServiceSyncXSD.tmp#recordInfo CourseManagementServiceSyncXSD.tmp#extension CourseManagementServiceSyncXSD.tmp#CourseTemplate.Type
Type cms:CourseTemplate.Type
Properties
content: complex
mixed: false
Used by
Model cms:label{0,1} , cms:title{0,1} , cms:catalogDescription{0,1} , cms:courseNumber{0,1} , cms:status{0,1} , cms:defaultCredits{0,1} , cms:org{0,1} , cms:listofTopics{0,1} , cms:listofPrerequisites{0,1} , cms:dataSource{0,1} , cms:recordInfo{0,1} , cms:extension{0,1}
Children cms:catalogDescription, cms:courseNumber, cms:dataSource, cms:defaultCredits, cms:extension, cms:label, cms:listofPrerequisites, cms:listofTopics, cms:org, cms:recordInfo, cms:status, cms:title
Instance
<cms:courseTemplate>
  <cms:label>{0,1}</cms:label>
  <cms:title>{0,1}</cms:title>
  <cms:catalogDescription>{0,1}</cms:catalogDescription>
  <cms:courseNumber>{0,1}</cms:courseNumber>
  <cms:status>{0,1}</cms:status>
  <cms:defaultCredits>{0,1}</cms:defaultCredits>
  <cms:org>{0,1}</cms:org>
  <cms:listofTopics>{0,1}</cms:listofTopics>
  <cms:listofPrerequisites>{0,1}</cms:listofPrerequisites>
  <cms:dataSource>{0,1}</cms:dataSource>
  <cms:recordInfo>{0,1}</cms:recordInfo>
  <cms:extension>{0,1}</cms:extension>
</cms:courseTemplate>
Source
<xs:element name="courseTemplate" type="cms:CourseTemplate.Type"/>
[ top ]
Element cms:courseTemplateRecord
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedGUID CourseManagementServiceSyncXSD.tmp#courseTemplate CourseManagementServiceSyncXSD.tmp#CourseTemplateRecord.Type
Type cms:CourseTemplateRecord.Type
Properties
content: complex
mixed: false
Used by
Model cms:sourcedGUID , cms:courseTemplate
Children cms:courseTemplate, cms:sourcedGUID
Instance
<cms:courseTemplateRecord>
  <cms:sourcedGUID>{1,1}</cms:sourcedGUID>
  <cms:courseTemplate>{1,1}</cms:courseTemplate>
</cms:courseTemplateRecord>
Source
<xs:element name="courseTemplateRecord" type="cms:CourseTemplateRecord.Type"/>
[ top ]

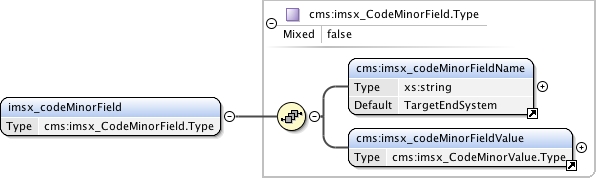

Element cms:imsx_codeMinorField
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#imsx_codeMinorFieldName CourseManagementServiceSyncXSD.tmp#imsx_codeMinorFieldValue CourseManagementServiceSyncXSD.tmp#imsx_CodeMinorField.Type
Type cms:imsx_CodeMinorField.Type
Properties
content: complex
mixed: false
Used by
Model cms:imsx_codeMinorFieldName , cms:imsx_codeMinorFieldValue
Children cms:imsx_codeMinorFieldName, cms:imsx_codeMinorFieldValue
Instance
<cms:imsx_codeMinorField>
  <cms:imsx_codeMinorFieldName>{1,1}</cms:imsx_codeMinorFieldName>
  <cms:imsx_codeMinorFieldValue>{1,1}</cms:imsx_codeMinorFieldValue>
</cms:imsx_codeMinorField>
Source
<xs:element name="imsx_codeMinorField" type="cms:imsx_CodeMinorField.Type"/>
[ top ]

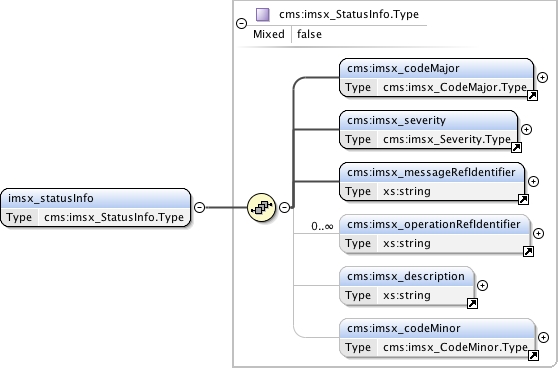

Element cms:imsx_statusInfo
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#imsx_codeMajor CourseManagementServiceSyncXSD.tmp#imsx_severity CourseManagementServiceSyncXSD.tmp#imsx_messageRefIdentifier CourseManagementServiceSyncXSD.tmp#imsx_operationRefIdentifier CourseManagementServiceSyncXSD.tmp#imsx_description CourseManagementServiceSyncXSD.tmp#imsx_codeMinor CourseManagementServiceSyncXSD.tmp#imsx_StatusInfo.Type
Type cms:imsx_StatusInfo.Type
Properties
content: complex
mixed: false
Used by
Model cms:imsx_codeMajor , cms:imsx_severity , cms:imsx_messageRefIdentifier , cms:imsx_operationRefIdentifier* , cms:imsx_description{0,1} , cms:imsx_codeMinor{0,1}
Children cms:imsx_codeMajor, cms:imsx_codeMinor, cms:imsx_description, cms:imsx_messageRefIdentifier, cms:imsx_operationRefIdentifier, cms:imsx_severity
Instance
<cms:imsx_statusInfo>
  <cms:imsx_codeMajor>{1,1}</cms:imsx_codeMajor>
  <cms:imsx_severity>{1,1}</cms:imsx_severity>
  <cms:imsx_messageRefIdentifier>{1,1}</cms:imsx_messageRefIdentifier>
  <cms:imsx_operationRefIdentifier>{0,unbounded}</cms:imsx_operationRefIdentifier>
  <cms:imsx_description>{0,1}</cms:imsx_description>
  <cms:imsx_codeMinor>{0,1}</cms:imsx_codeMinor>
</cms:imsx_statusInfo>
Source
<xs:element name="imsx_statusInfo" type="cms:imsx_StatusInfo.Type"/>
[ top ]

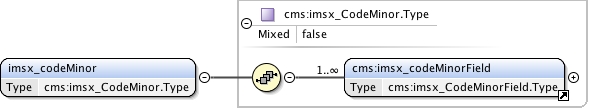

Element cms:imsx_codeMinor
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#imsx_codeMinorField CourseManagementServiceSyncXSD.tmp#imsx_CodeMinor.Type
Type cms:imsx_CodeMinor.Type
Properties
content: complex
mixed: false
Used by
Model cms:imsx_codeMinorField+
Children cms:imsx_codeMinorField
Instance
<cms:imsx_codeMinor>
  <cms:imsx_codeMinorField>{1,unbounded}</cms:imsx_codeMinorField>
</cms:imsx_codeMinor>
Source
<xs:element name="imsx_codeMinor" type="cms:imsx_CodeMinor.Type"/>
[ top ]
Element cms:courseSectionId
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#GUID.Type
Type cms:GUID.Type
Properties
content: simple
Used by
Source
<xs:element name="courseSectionId" type="cms:GUID.Type"/>
[ top ]

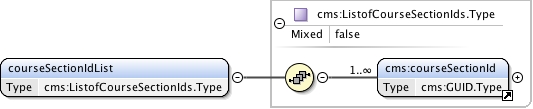

Element cms:courseSectionIdList
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#courseSectionId CourseManagementServiceSyncXSD.tmp#ListofCourseSectionIds.Type
Type cms:ListofCourseSectionIds.Type
Properties
content: complex
mixed: false
Used by
Model cms:courseSectionId+
Children cms:courseSectionId
Instance
<cms:courseSectionIdList>
  <cms:courseSectionId>{1,unbounded}</cms:courseSectionId>
</cms:courseSectionIdList>
Source
<xs:element name="courseSectionIdList" type="cms:ListofCourseSectionIds.Type"/>
[ top ]

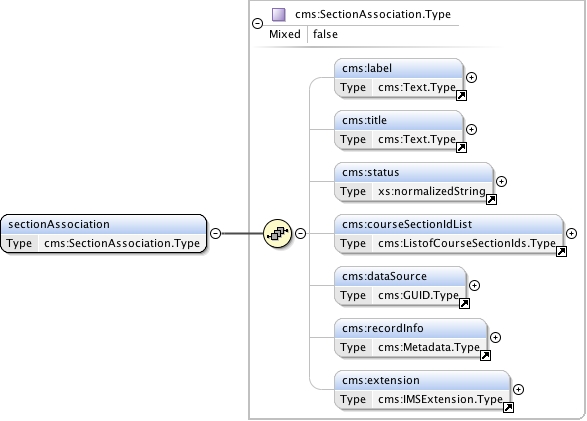

Element cms:sectionAssociation
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#label CourseManagementServiceSyncXSD.tmp#title CourseManagementServiceSyncXSD.tmp#status CourseManagementServiceSyncXSD.tmp#courseSectionIdList CourseManagementServiceSyncXSD.tmp#dataSource CourseManagementServiceSyncXSD.tmp#recordInfo CourseManagementServiceSyncXSD.tmp#extension CourseManagementServiceSyncXSD.tmp#SectionAssociation.Type
Type cms:SectionAssociation.Type
Properties
content: complex
mixed: false
Used by
Model cms:label{0,1} , cms:title{0,1} , cms:status{0,1} , cms:courseSectionIdList{0,1} , cms:dataSource{0,1} , cms:recordInfo{0,1} , cms:extension{0,1}
Children cms:courseSectionIdList, cms:dataSource, cms:extension, cms:label, cms:recordInfo, cms:status, cms:title
Instance
<cms:sectionAssociation>
  <cms:label>{0,1}</cms:label>
  <cms:title>{0,1}</cms:title>
  <cms:status>{0,1}</cms:status>
  <cms:courseSectionIdList>{0,1}</cms:courseSectionIdList>
  <cms:dataSource>{0,1}</cms:dataSource>
  <cms:recordInfo>{0,1}</cms:recordInfo>
  <cms:extension>{0,1}</cms:extension>
</cms:sectionAssociation>
Source
<xs:element name="sectionAssociation" type="cms:SectionAssociation.Type"/>
[ top ]

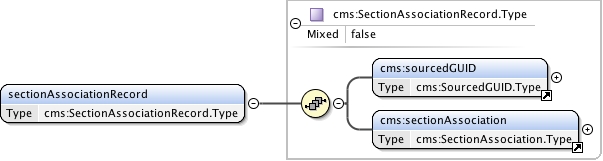

Element cms:sectionAssociationRecord
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedGUID CourseManagementServiceSyncXSD.tmp#sectionAssociation CourseManagementServiceSyncXSD.tmp#SectionAssociationRecord.Type
Type cms:SectionAssociationRecord.Type
Properties
content: complex
mixed: false
Used by
Model cms:sourcedGUID , cms:sectionAssociation
Children cms:sectionAssociation, cms:sourcedGUID
Instance
<cms:sectionAssociationRecord>
  <cms:sourcedGUID>{1,1}</cms:sourcedGUID>
  <cms:sectionAssociation>{1,1}</cms:sectionAssociation>
</cms:sectionAssociationRecord>
Source
<xs:element name="sectionAssociationRecord" type="cms:SectionAssociationRecord.Type"/>
[ top ]

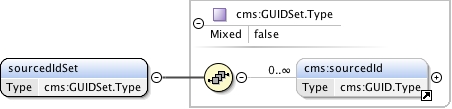

Element cms:sourcedIdSet
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedId CourseManagementServiceSyncXSD.tmp#GUIDSet.Type
Type cms:GUIDSet.Type
Properties
content: complex
mixed: false
Used by
Model cms:sourcedId*
Children cms:sourcedId
Instance
<cms:sourcedIdSet>
  <cms:sourcedId>{0,unbounded}</cms:sourcedId>
</cms:sourcedIdSet>
Source
<xs:element name="sourcedIdSet" type="cms:GUIDSet.Type"/>
[ top ]
Element cms:fromSavePoint
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#SequenceIdentifier.Type
Type cms:SequenceIdentifier.Type
Properties
content: simple
Used by
Source
<xs:element name="fromSavePoint" type="cms:SequenceIdentifier.Type"/>
[ top ]
Element cms:savePoint
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#SequenceIdentifier.Type
Type cms:SequenceIdentifier.Type
Properties
content: simple
Used by
Source
<xs:element name="savePoint" type="cms:SequenceIdentifier.Type"/>
[ top ]
Element cms:courseTemplateRecordSet
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#courseTemplateRecord CourseManagementServiceSyncXSD.tmp#CourseTemplateRecordSet.Type
Type cms:CourseTemplateRecordSet.Type
Properties
content: complex
mixed: false
Used by
Model cms:courseTemplateRecord*
Children cms:courseTemplateRecord
Instance
<cms:courseTemplateRecordSet>
  <cms:courseTemplateRecord>{0,unbounded}</cms:courseTemplateRecord>
</cms:courseTemplateRecordSet>
Source
<xs:element name="courseTemplateRecordSet" type="cms:CourseTemplateRecordSet.Type"/>
[ top ]
Element cms:queryObject
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#QueryObject.Type
Type cms:QueryObject.Type
Properties
content: simple
Used by
Source
<xs:element name="queryObject" type="cms:QueryObject.Type"/>
[ top ]
Element cms:newSourcedId
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#GUID.Type
Type cms:GUID.Type
Properties
content: simple
Used by
Source
<xs:element name="newSourcedId" type="cms:GUID.Type"/>
[ top ]
Element cms:courseOfferingRecordSet
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#courseOfferingRecord CourseManagementServiceSyncXSD.tmp#CourseOfferingRecordSet.Type
Type cms:CourseOfferingRecordSet.Type
Properties
content: complex
mixed: false
Used by
Model cms:courseOfferingRecord*
Children cms:courseOfferingRecord
Instance
<cms:courseOfferingRecordSet>
  <cms:courseOfferingRecord>{0,unbounded}</cms:courseOfferingRecord>
</cms:courseOfferingRecordSet>
Source
<xs:element name="courseOfferingRecordSet" type="cms:CourseOfferingRecordSet.Type"/>
[ top ]
Element cms:courseSectionRecordSet
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#courseSectionRecord CourseManagementServiceSyncXSD.tmp#CourseSectionRecordSet.Type
Type cms:CourseSectionRecordSet.Type
Properties
content: complex
mixed: false
Used by
Model cms:courseSectionRecord*
Children cms:courseSectionRecord
Instance
<cms:courseSectionRecordSet>
  <cms:courseSectionRecord>{0,unbounded}</cms:courseSectionRecord>
</cms:courseSectionRecordSet>
Source
<xs:element name="courseSectionRecordSet" type="cms:CourseSectionRecordSet.Type"/>
[ top ]
Element cms:sectionAssociationRecordSet
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sectionAssociationRecord CourseManagementServiceSyncXSD.tmp#SectionAssociationRecordSet.Type
Type cms:SectionAssociationRecordSet.Type
Properties
content: complex
mixed: false
Used by
Model cms:sectionAssociationRecord*
Children cms:sectionAssociationRecord
Instance
<cms:sectionAssociationRecordSet>
  <cms:sectionAssociationRecord>{0,unbounded}</cms:sectionAssociationRecord>
</cms:sectionAssociationRecordSet>
Source
<xs:element name="sectionAssociationRecordSet" type="cms:SectionAssociationRecordSet.Type"/>
[ top ]
Element cms:sectionAssociationSourcedId
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#GUID.Type
Type cms:GUID.Type
Properties
content: simple
Used by
Source
<xs:element name="sectionAssociationSourcedId" type="cms:GUID.Type"/>
[ top ]
Element cms:courseSectionSourcedId
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#GUID.Type
Type cms:GUID.Type
Properties
content: simple
Used by
Source
<xs:element name="courseSectionSourcedId" type="cms:GUID.Type"/>
[ top ]
Element cms:createCourseTemplateRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedId CourseManagementServiceSyncXSD.tmp#courseTemplateRecord
Properties
content: complex
Model cms:sourcedId , cms:courseTemplateRecord
Children cms:courseTemplateRecord, cms:sourcedId
Instance
<cms:createCourseTemplateRequest>
  <cms:sourcedId>{1,1}</cms:sourcedId>
  <cms:courseTemplateRecord>{1,1}</cms:courseTemplateRecord>
</cms:createCourseTemplateRequest>
Source
<xs:element name="createCourseTemplateRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedId"/>
      <xs:element ref="cms:courseTemplateRecord"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:createCourseTemplateResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Source
<xs:element name="createCourseTemplateResponse"/>
[ top ]
Element cms:createByProxyCourseTemplateRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#courseTemplateRecord
Properties
content: complex
Model cms:courseTemplateRecord
Children cms:courseTemplateRecord
Instance
<cms:createByProxyCourseTemplateRequest>
  <cms:courseTemplateRecord>{1,1}</cms:courseTemplateRecord>
</cms:createByProxyCourseTemplateRequest>
Source
<xs:element name="createByProxyCourseTemplateRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:courseTemplateRecord"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:createByProxyCourseTemplateResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedId
Properties
content: complex
Model cms:sourcedId{0,1}
Children cms:sourcedId
Instance
<cms:createByProxyCourseTemplateResponse>
  <cms:sourcedId>{0,1}</cms:sourcedId>
</cms:createByProxyCourseTemplateResponse>
Source
<xs:element name="createByProxyCourseTemplateResponse">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedId" minOccurs="0" maxOccurs="1"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:deleteCourseTemplateRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedId
Properties
content: complex
Model cms:sourcedId
Children cms:sourcedId
Instance
<cms:deleteCourseTemplateRequest>
  <cms:sourcedId>{1,1}</cms:sourcedId>
</cms:deleteCourseTemplateRequest>
Source
<xs:element name="deleteCourseTemplateRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedId"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:deleteCourseTemplateResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Source
<xs:element name="deleteCourseTemplateResponse"/>
[ top ]
Element cms:readCourseTemplateRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedId
Properties
content: complex
Model cms:sourcedId
Children cms:sourcedId
Instance
<cms:readCourseTemplateRequest>
  <cms:sourcedId>{1,1}</cms:sourcedId>
</cms:readCourseTemplateRequest>
Source
<xs:element name="readCourseTemplateRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedId"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:readCourseTemplateResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#courseTemplateRecord
Properties
content: complex
Model cms:courseTemplateRecord{0,1}
Children cms:courseTemplateRecord
Instance
<cms:readCourseTemplateResponse>
  <cms:courseTemplateRecord>{0,1}</cms:courseTemplateRecord>
</cms:readCourseTemplateResponse>
Source
<xs:element name="readCourseTemplateResponse">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:courseTemplateRecord" minOccurs="0" maxOccurs="1"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:readAllCourseTemplateIdsRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Source
<xs:element name="readAllCourseTemplateIdsRequest"/>
[ top ]
Element cms:readAllCourseTemplateIdsResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedIdSet
Properties
content: complex
Model cms:sourcedIdSet{0,1}
Children cms:sourcedIdSet
Instance
<cms:readAllCourseTemplateIdsResponse>
  <cms:sourcedIdSet>{0,1}</cms:sourcedIdSet>
</cms:readAllCourseTemplateIdsResponse>
Source
<xs:element name="readAllCourseTemplateIdsResponse">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedIdSet" minOccurs="0" maxOccurs="1"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:readCourseTemplateIdsFromSavePointRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#fromSavePoint
Properties
content: complex
Model cms:fromSavePoint
Children cms:fromSavePoint
Instance
<cms:readCourseTemplateIdsFromSavePointRequest>
  <cms:fromSavePoint>{1,1}</cms:fromSavePoint>
</cms:readCourseTemplateIdsFromSavePointRequest>
Source
<xs:element name="readCourseTemplateIdsFromSavePointRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:fromSavePoint"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:readCourseTemplateIdsFromSavePointResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedIdSet CourseManagementServiceSyncXSD.tmp#savePoint
Properties
content: complex
Model cms:sourcedIdSet{0,1} , cms:savePoint{0,1}
Children cms:savePoint, cms:sourcedIdSet
Instance
<cms:readCourseTemplateIdsFromSavePointResponse>
  <cms:sourcedIdSet>{0,1}</cms:sourcedIdSet>
  <cms:savePoint>{0,1}</cms:savePoint>
</cms:readCourseTemplateIdsFromSavePointResponse>
Source
<xs:element name="readCourseTemplateIdsFromSavePointResponse">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedIdSet" minOccurs="0" maxOccurs="1"/>
      <xs:element ref="cms:savePoint" minOccurs="0" maxOccurs="1"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:readCourseTemplatesRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedIdSet
Properties
content: complex
Model cms:sourcedIdSet
Children cms:sourcedIdSet
Instance
<cms:readCourseTemplatesRequest>
  <cms:sourcedIdSet>{1,1}</cms:sourcedIdSet>
</cms:readCourseTemplatesRequest>
Source
<xs:element name="readCourseTemplatesRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedIdSet"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:readCourseTemplatesResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#courseTemplateRecordSet CourseManagementServiceSyncXSD.tmp#savePoint
Properties
content: complex
Model cms:courseTemplateRecordSet{0,1} , cms:savePoint{0,1}
Children cms:courseTemplateRecordSet, cms:savePoint
Instance
<cms:readCourseTemplatesResponse>
  <cms:courseTemplateRecordSet>{0,1}</cms:courseTemplateRecordSet>
  <cms:savePoint>{0,1}</cms:savePoint>
</cms:readCourseTemplatesResponse>
Source
<xs:element name="readCourseTemplatesResponse">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:courseTemplateRecordSet" minOccurs="0" maxOccurs="1"/>
      <xs:element ref="cms:savePoint" minOccurs="0" maxOccurs="1"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:readCourseTemplatesFromSavePointRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#fromSavePoint
Properties
content: complex
Model cms:fromSavePoint
Children cms:fromSavePoint
Instance
<cms:readCourseTemplatesFromSavePointRequest>
  <cms:fromSavePoint>{1,1}</cms:fromSavePoint>
</cms:readCourseTemplatesFromSavePointRequest>
Source
<xs:element name="readCourseTemplatesFromSavePointRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:fromSavePoint"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:readCourseTemplatesFromSavePointResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#courseTemplateRecordSet CourseManagementServiceSyncXSD.tmp#savePoint
Properties
content: complex
Model cms:courseTemplateRecordSet{0,1} , cms:savePoint{0,1}
Children cms:courseTemplateRecordSet, cms:savePoint
Instance
<cms:readCourseTemplatesFromSavePointResponse>
  <cms:courseTemplateRecordSet>{0,1}</cms:courseTemplateRecordSet>
  <cms:savePoint>{0,1}</cms:savePoint>
</cms:readCourseTemplatesFromSavePointResponse>
Source
<xs:element name="readCourseTemplatesFromSavePointResponse">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:courseTemplateRecordSet" minOccurs="0" maxOccurs="1"/>
      <xs:element ref="cms:savePoint" minOccurs="0" maxOccurs="1"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:readCourseOfferingIdsForCourseTemplateRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedId
Properties
content: complex
Model cms:sourcedId
Children cms:sourcedId
Instance
<cms:readCourseOfferingIdsForCourseTemplateRequest>
  <cms:sourcedId>{1,1}</cms:sourcedId>
</cms:readCourseOfferingIdsForCourseTemplateRequest>
Source
<xs:element name="readCourseOfferingIdsForCourseTemplateRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedId"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:readCourseOfferingIdsForCourseTemplateResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedIdSet
Properties
content: complex
Model cms:sourcedIdSet{0,1}
Children cms:sourcedIdSet
Instance
<cms:readCourseOfferingIdsForCourseTemplateResponse>
  <cms:sourcedIdSet>{0,1}</cms:sourcedIdSet>
</cms:readCourseOfferingIdsForCourseTemplateResponse>
Source
<xs:element name="readCourseOfferingIdsForCourseTemplateResponse">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedIdSet" minOccurs="0" maxOccurs="1"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:updateCourseTemplateRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedId CourseManagementServiceSyncXSD.tmp#courseTemplateRecord
Properties
content: complex
Model cms:sourcedId , cms:courseTemplateRecord
Children cms:courseTemplateRecord, cms:sourcedId
Instance
<cms:updateCourseTemplateRequest>
  <cms:sourcedId>{1,1}</cms:sourcedId>
  <cms:courseTemplateRecord>{1,1}</cms:courseTemplateRecord>
</cms:updateCourseTemplateRequest>
Source
<xs:element name="updateCourseTemplateRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedId"/>
      <xs:element ref="cms:courseTemplateRecord"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:updateCourseTemplateResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Source
<xs:element name="updateCourseTemplateResponse"/>
[ top ]
Element cms:replaceCourseTemplateRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedId CourseManagementServiceSyncXSD.tmp#courseTemplateRecord
Properties
content: complex
Model cms:sourcedId , cms:courseTemplateRecord
Children cms:courseTemplateRecord, cms:sourcedId
Instance
<cms:replaceCourseTemplateRequest>
  <cms:sourcedId>{1,1}</cms:sourcedId>
  <cms:courseTemplateRecord>{1,1}</cms:courseTemplateRecord>
</cms:replaceCourseTemplateRequest>
Source
<xs:element name="replaceCourseTemplateRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedId"/>
      <xs:element ref="cms:courseTemplateRecord"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:replaceCourseTemplateResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Source
<xs:element name="replaceCourseTemplateResponse"/>
[ top ]
Element cms:discoverCourseTemplateIdsRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#queryObject
Properties
content: complex
Model cms:queryObject
Children cms:queryObject
Instance
<cms:discoverCourseTemplateIdsRequest>
  <cms:queryObject>{1,1}</cms:queryObject>
</cms:discoverCourseTemplateIdsRequest>
Source
<xs:element name="discoverCourseTemplateIdsRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:queryObject"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:discoverCourseTemplateIdsResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedIdSet
Properties
content: complex
Model cms:sourcedIdSet{0,1}
Children cms:sourcedIdSet
Instance
<cms:discoverCourseTemplateIdsResponse>
  <cms:sourcedIdSet>{0,1}</cms:sourcedIdSet>
</cms:discoverCourseTemplateIdsResponse>
Source
<xs:element name="discoverCourseTemplateIdsResponse">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedIdSet" minOccurs="0" maxOccurs="1"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:changeCourseTemplateIdentifierRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedId CourseManagementServiceSyncXSD.tmp#newSourcedId
Properties
content: complex
Model cms:sourcedId , cms:newSourcedId
Children cms:newSourcedId, cms:sourcedId
Instance
<cms:changeCourseTemplateIdentifierRequest>
  <cms:sourcedId>{1,1}</cms:sourcedId>
  <cms:newSourcedId>{1,1}</cms:newSourcedId>
</cms:changeCourseTemplateIdentifierRequest>
Source
<xs:element name="changeCourseTemplateIdentifierRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedId"/>
      <xs:element ref="cms:newSourcedId"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:changeCourseTemplateIdentifierResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Source
<xs:element name="changeCourseTemplateIdentifierResponse"/>
[ top ]
Element cms:createCourseOfferingRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedId CourseManagementServiceSyncXSD.tmp#courseOfferingRecord
Properties
content: complex
Model cms:sourcedId , cms:courseOfferingRecord
Children cms:courseOfferingRecord, cms:sourcedId
Instance
<cms:createCourseOfferingRequest>
  <cms:sourcedId>{1,1}</cms:sourcedId>
  <cms:courseOfferingRecord>{1,1}</cms:courseOfferingRecord>
</cms:createCourseOfferingRequest>
Source
<xs:element name="createCourseOfferingRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedId"/>
      <xs:element ref="cms:courseOfferingRecord"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:createCourseOfferingResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Source
<xs:element name="createCourseOfferingResponse"/>
[ top ]
Element cms:createByProxyCourseOfferingRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#courseOfferingRecord
Properties
content: complex
Model cms:courseOfferingRecord
Children cms:courseOfferingRecord
Instance
<cms:createByProxyCourseOfferingRequest>
  <cms:courseOfferingRecord>{1,1}</cms:courseOfferingRecord>
</cms:createByProxyCourseOfferingRequest>
Source
<xs:element name="createByProxyCourseOfferingRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:courseOfferingRecord"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:createByProxyCourseOfferingResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedId
Properties
content: complex
Model cms:sourcedId{0,1}
Children cms:sourcedId
Instance
<cms:createByProxyCourseOfferingResponse>
  <cms:sourcedId>{0,1}</cms:sourcedId>
</cms:createByProxyCourseOfferingResponse>
Source
<xs:element name="createByProxyCourseOfferingResponse">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedId" minOccurs="0" maxOccurs="1"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:createCourseOfferingFromCourseOfferingRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedId CourseManagementServiceSyncXSD.tmp#academicSession CourseManagementServiceSyncXSD.tmp#newSourcedId
Properties
content: complex
Model cms:sourcedId , cms:academicSession , cms:newSourcedId
Children cms:academicSession, cms:newSourcedId, cms:sourcedId
Instance
<cms:createCourseOfferingFromCourseOfferingRequest>
  <cms:sourcedId>{1,1}</cms:sourcedId>
  <cms:academicSession>{1,1}</cms:academicSession>
  <cms:newSourcedId>{1,1}</cms:newSourcedId>
</cms:createCourseOfferingFromCourseOfferingRequest>
Source
<xs:element name="createCourseOfferingFromCourseOfferingRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedId"/>
      <xs:element ref="cms:academicSession"/>
      <xs:element ref="cms:newSourcedId"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:createCourseOfferingFromCourseOfferingResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Source
<xs:element name="createCourseOfferingFromCourseOfferingResponse"/>
[ top ]
Element cms:deleteCourseOfferingRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedId
Properties
content: complex
Model cms:sourcedId
Children cms:sourcedId
Instance
<cms:deleteCourseOfferingRequest>
  <cms:sourcedId>{1,1}</cms:sourcedId>
</cms:deleteCourseOfferingRequest>
Source
<xs:element name="deleteCourseOfferingRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedId"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:deleteCourseOfferingResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Source
<xs:element name="deleteCourseOfferingResponse"/>
[ top ]
Element cms:readCourseOfferingRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedId
Properties
content: complex
Model cms:sourcedId
Children cms:sourcedId
Instance
<cms:readCourseOfferingRequest>
  <cms:sourcedId>{1,1}</cms:sourcedId>
</cms:readCourseOfferingRequest>
Source
<xs:element name="readCourseOfferingRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedId"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:readCourseOfferingResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#courseOfferingRecord
Properties
content: complex
Model cms:courseOfferingRecord{0,1}
Children cms:courseOfferingRecord
Instance
<cms:readCourseOfferingResponse>
  <cms:courseOfferingRecord>{0,1}</cms:courseOfferingRecord>
</cms:readCourseOfferingResponse>
Source
<xs:element name="readCourseOfferingResponse">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:courseOfferingRecord" minOccurs="0" maxOccurs="1"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:readAllCourseOfferingIdsRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Source
<xs:element name="readAllCourseOfferingIdsRequest"/>
[ top ]
Element cms:readAllCourseOfferingIdsResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedIdSet
Properties
content: complex
Model cms:sourcedIdSet{0,1}
Children cms:sourcedIdSet
Instance
<cms:readAllCourseOfferingIdsResponse>
  <cms:sourcedIdSet>{0,1}</cms:sourcedIdSet>
</cms:readAllCourseOfferingIdsResponse>
Source
<xs:element name="readAllCourseOfferingIdsResponse">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedIdSet" minOccurs="0" maxOccurs="1"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:readCourseOfferingIdsFromSavePointRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#fromSavePoint
Properties
content: complex
Model cms:fromSavePoint
Children cms:fromSavePoint
Instance
<cms:readCourseOfferingIdsFromSavePointRequest>
  <cms:fromSavePoint>{1,1}</cms:fromSavePoint>
</cms:readCourseOfferingIdsFromSavePointRequest>
Source
<xs:element name="readCourseOfferingIdsFromSavePointRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:fromSavePoint"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:readCourseOfferingIdsFromSavePointResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedIdSet CourseManagementServiceSyncXSD.tmp#savePoint
Properties
content: complex
Model cms:sourcedIdSet{0,1} , cms:savePoint{0,1}
Children cms:savePoint, cms:sourcedIdSet
Instance
<cms:readCourseOfferingIdsFromSavePointResponse>
  <cms:sourcedIdSet>{0,1}</cms:sourcedIdSet>
  <cms:savePoint>{0,1}</cms:savePoint>
</cms:readCourseOfferingIdsFromSavePointResponse>
Source
<xs:element name="readCourseOfferingIdsFromSavePointResponse">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedIdSet" minOccurs="0" maxOccurs="1"/>
      <xs:element ref="cms:savePoint" minOccurs="0" maxOccurs="1"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:readAllActiveCourseOfferingIdsForAcademicSessionRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#academicSession
Properties
content: complex
Model cms:academicSession
Children cms:academicSession
Instance
<cms:readAllActiveCourseOfferingIdsForAcademicSessionRequest>
  <cms:academicSession>{1,1}</cms:academicSession>
</cms:readAllActiveCourseOfferingIdsForAcademicSessionRequest>
Source
<xs:element name="readAllActiveCourseOfferingIdsForAcademicSessionRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:academicSession"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:readAllActiveCourseOfferingIdsForAcademicSessionResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedIdSet
Properties
content: complex
Model cms:sourcedIdSet{0,1}
Children cms:sourcedIdSet
Instance
<cms:readAllActiveCourseOfferingIdsForAcademicSessionResponse>
  <cms:sourcedIdSet>{0,1}</cms:sourcedIdSet>
</cms:readAllActiveCourseOfferingIdsForAcademicSessionResponse>
Source
<xs:element name="readAllActiveCourseOfferingIdsForAcademicSessionResponse">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedIdSet" minOccurs="0" maxOccurs="1"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:readCourseSectionIdsForCourseOfferingRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedId
Properties
content: complex
Model cms:sourcedId
Children cms:sourcedId
Instance
<cms:readCourseSectionIdsForCourseOfferingRequest>
  <cms:sourcedId>{1,1}</cms:sourcedId>
</cms:readCourseSectionIdsForCourseOfferingRequest>
Source
<xs:element name="readCourseSectionIdsForCourseOfferingRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedId"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:readCourseSectionIdsForCourseOfferingResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedIdSet
Properties
content: complex
Model cms:sourcedIdSet{0,1}
Children cms:sourcedIdSet
Instance
<cms:readCourseSectionIdsForCourseOfferingResponse>
  <cms:sourcedIdSet>{0,1}</cms:sourcedIdSet>
</cms:readCourseSectionIdsForCourseOfferingResponse>
Source
<xs:element name="readCourseSectionIdsForCourseOfferingResponse">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedIdSet" minOccurs="0" maxOccurs="1"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:readCourseOfferingsRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedIdSet
Properties
content: complex
Model cms:sourcedIdSet
Children cms:sourcedIdSet
Instance
<cms:readCourseOfferingsRequest>
  <cms:sourcedIdSet>{1,1}</cms:sourcedIdSet>
</cms:readCourseOfferingsRequest>
Source
<xs:element name="readCourseOfferingsRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedIdSet"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:readCourseOfferingsResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#courseOfferingRecordSet CourseManagementServiceSyncXSD.tmp#savePoint
Properties
content: complex
Model cms:courseOfferingRecordSet{0,1} , cms:savePoint{0,1}
Children cms:courseOfferingRecordSet, cms:savePoint
Instance
<cms:readCourseOfferingsResponse>
  <cms:courseOfferingRecordSet>{0,1}</cms:courseOfferingRecordSet>
  <cms:savePoint>{0,1}</cms:savePoint>
</cms:readCourseOfferingsResponse>
Source
<xs:element name="readCourseOfferingsResponse">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:courseOfferingRecordSet" minOccurs="0" maxOccurs="1"/>
      <xs:element ref="cms:savePoint" minOccurs="0" maxOccurs="1"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:readCourseOfferingsFromSavePointRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#fromSavePoint
Properties
content: complex
Model cms:fromSavePoint
Children cms:fromSavePoint
Instance
<cms:readCourseOfferingsFromSavePointRequest>
  <cms:fromSavePoint>{1,1}</cms:fromSavePoint>
</cms:readCourseOfferingsFromSavePointRequest>
Source
<xs:element name="readCourseOfferingsFromSavePointRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:fromSavePoint"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:readCourseOfferingsFromSavePointResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#courseOfferingRecordSet CourseManagementServiceSyncXSD.tmp#savePoint
Properties
content: complex
Model cms:courseOfferingRecordSet{0,1} , cms:savePoint{0,1}
Children cms:courseOfferingRecordSet, cms:savePoint
Instance
<cms:readCourseOfferingsFromSavePointResponse>
  <cms:courseOfferingRecordSet>{0,1}</cms:courseOfferingRecordSet>
  <cms:savePoint>{0,1}</cms:savePoint>
</cms:readCourseOfferingsFromSavePointResponse>
Source
<xs:element name="readCourseOfferingsFromSavePointResponse">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:courseOfferingRecordSet" minOccurs="0" maxOccurs="1"/>
      <xs:element ref="cms:savePoint" minOccurs="0" maxOccurs="1"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:updateCourseOfferingRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedId CourseManagementServiceSyncXSD.tmp#courseOfferingRecord
Properties
content: complex
Model cms:sourcedId , cms:courseOfferingRecord
Children cms:courseOfferingRecord, cms:sourcedId
Instance
<cms:updateCourseOfferingRequest>
  <cms:sourcedId>{1,1}</cms:sourcedId>
  <cms:courseOfferingRecord>{1,1}</cms:courseOfferingRecord>
</cms:updateCourseOfferingRequest>
Source
<xs:element name="updateCourseOfferingRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedId"/>
      <xs:element ref="cms:courseOfferingRecord"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:updateCourseOfferingResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Source
<xs:element name="updateCourseOfferingResponse"/>
[ top ]
Element cms:updateCourseOfferingStatusRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedId CourseManagementServiceSyncXSD.tmp#status
Properties
content: complex
Model cms:sourcedId , cms:status
Children cms:sourcedId, cms:status
Instance
<cms:updateCourseOfferingStatusRequest>
  <cms:sourcedId>{1,1}</cms:sourcedId>
  <cms:status>{1,1}</cms:status>
</cms:updateCourseOfferingStatusRequest>
Source
<xs:element name="updateCourseOfferingStatusRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedId"/>
      <xs:element ref="cms:status"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:updateCourseOfferingStatusResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Source
<xs:element name="updateCourseOfferingStatusResponse"/>
[ top ]
Element cms:replaceCourseOfferingRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedId CourseManagementServiceSyncXSD.tmp#courseOfferingRecord
Properties
content: complex
Model cms:sourcedId , cms:courseOfferingRecord
Children cms:courseOfferingRecord, cms:sourcedId
Instance
<cms:replaceCourseOfferingRequest>
  <cms:sourcedId>{1,1}</cms:sourcedId>
  <cms:courseOfferingRecord>{1,1}</cms:courseOfferingRecord>
</cms:replaceCourseOfferingRequest>
Source
<xs:element name="replaceCourseOfferingRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedId"/>
      <xs:element ref="cms:courseOfferingRecord"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:replaceCourseOfferingResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Source
<xs:element name="replaceCourseOfferingResponse"/>
[ top ]
Element cms:discoverCourseOfferingIdsRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#queryObject
Properties
content: complex
Model cms:queryObject
Children cms:queryObject
Instance
<cms:discoverCourseOfferingIdsRequest>
  <cms:queryObject>{1,1}</cms:queryObject>
</cms:discoverCourseOfferingIdsRequest>
Source
<xs:element name="discoverCourseOfferingIdsRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:queryObject"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:discoverCourseOfferingIdsResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedIdSet
Properties
content: complex
Model cms:sourcedIdSet{0,1}
Children cms:sourcedIdSet
Instance
<cms:discoverCourseOfferingIdsResponse>
  <cms:sourcedIdSet>{0,1}</cms:sourcedIdSet>
</cms:discoverCourseOfferingIdsResponse>
Source
<xs:element name="discoverCourseOfferingIdsResponse">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedIdSet" minOccurs="0" maxOccurs="1"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:changeCourseOfferingIdentifierRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedId CourseManagementServiceSyncXSD.tmp#newSourcedId
Properties
content: complex
Model cms:sourcedId , cms:newSourcedId
Children cms:newSourcedId, cms:sourcedId
Instance
<cms:changeCourseOfferingIdentifierRequest>
  <cms:sourcedId>{1,1}</cms:sourcedId>
  <cms:newSourcedId>{1,1}</cms:newSourcedId>
</cms:changeCourseOfferingIdentifierRequest>
Source
<xs:element name="changeCourseOfferingIdentifierRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedId"/>
      <xs:element ref="cms:newSourcedId"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:changeCourseOfferingIdentifierResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Source
<xs:element name="changeCourseOfferingIdentifierResponse"/>
[ top ]
Element cms:createCourseSectionRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedId CourseManagementServiceSyncXSD.tmp#courseSectionRecord
Properties
content: complex
Model cms:sourcedId , cms:courseSectionRecord
Children cms:courseSectionRecord, cms:sourcedId
Instance
<cms:createCourseSectionRequest>
  <cms:sourcedId>{1,1}</cms:sourcedId>
  <cms:courseSectionRecord>{1,1}</cms:courseSectionRecord>
</cms:createCourseSectionRequest>
Source
<xs:element name="createCourseSectionRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedId"/>
      <xs:element ref="cms:courseSectionRecord"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:createCourseSectionResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Source
<xs:element name="createCourseSectionResponse"/>
[ top ]
Element cms:createByProxyCourseSectionRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#courseSectionRecord
Properties
content: complex
Model cms:courseSectionRecord
Children cms:courseSectionRecord
Instance
<cms:createByProxyCourseSectionRequest>
  <cms:courseSectionRecord>{1,1}</cms:courseSectionRecord>
</cms:createByProxyCourseSectionRequest>
Source
<xs:element name="createByProxyCourseSectionRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:courseSectionRecord"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:createByProxyCourseSectionResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedId
Properties
content: complex
Model cms:sourcedId{0,1}
Children cms:sourcedId
Instance
<cms:createByProxyCourseSectionResponse>
  <cms:sourcedId>{0,1}</cms:sourcedId>
</cms:createByProxyCourseSectionResponse>
Source
<xs:element name="createByProxyCourseSectionResponse">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedId" minOccurs="0" maxOccurs="1"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:createCourseSectionFromCourseSectionRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedId CourseManagementServiceSyncXSD.tmp#academicSession CourseManagementServiceSyncXSD.tmp#newSourcedId
Properties
content: complex
Model cms:sourcedId , cms:academicSession , cms:newSourcedId
Children cms:academicSession, cms:newSourcedId, cms:sourcedId
Instance
<cms:createCourseSectionFromCourseSectionRequest>
  <cms:sourcedId>{1,1}</cms:sourcedId>
  <cms:academicSession>{1,1}</cms:academicSession>
  <cms:newSourcedId>{1,1}</cms:newSourcedId>
</cms:createCourseSectionFromCourseSectionRequest>
Source
<xs:element name="createCourseSectionFromCourseSectionRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedId"/>
      <xs:element ref="cms:academicSession"/>
      <xs:element ref="cms:newSourcedId"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:createCourseSectionFromCourseSectionResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Source
<xs:element name="createCourseSectionFromCourseSectionResponse"/>
[ top ]
Element cms:deleteCourseSectionRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedId
Properties
content: complex
Model cms:sourcedId
Children cms:sourcedId
Instance
<cms:deleteCourseSectionRequest>
  <cms:sourcedId>{1,1}</cms:sourcedId>
</cms:deleteCourseSectionRequest>
Source
<xs:element name="deleteCourseSectionRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedId"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:deleteCourseSectionResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Source
<xs:element name="deleteCourseSectionResponse"/>
[ top ]
Element cms:readCourseSectionRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedId
Properties
content: complex
Model cms:sourcedId
Children cms:sourcedId
Instance
<cms:readCourseSectionRequest>
  <cms:sourcedId>{1,1}</cms:sourcedId>
</cms:readCourseSectionRequest>
Source
<xs:element name="readCourseSectionRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedId"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:readCourseSectionResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#courseSectionRecord
Properties
content: complex
Model cms:courseSectionRecord{0,1}
Children cms:courseSectionRecord
Instance
<cms:readCourseSectionResponse>
  <cms:courseSectionRecord>{0,1}</cms:courseSectionRecord>
</cms:readCourseSectionResponse>
Source
<xs:element name="readCourseSectionResponse">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:courseSectionRecord" minOccurs="0" maxOccurs="1"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:readAllCourseSectionIdsRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Source
<xs:element name="readAllCourseSectionIdsRequest"/>
[ top ]
Element cms:readAllCourseSectionIdsResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedIdSet
Properties
content: complex
Model cms:sourcedIdSet{0,1}
Children cms:sourcedIdSet
Instance
<cms:readAllCourseSectionIdsResponse>
  <cms:sourcedIdSet>{0,1}</cms:sourcedIdSet>
</cms:readAllCourseSectionIdsResponse>
Source
<xs:element name="readAllCourseSectionIdsResponse">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedIdSet" minOccurs="0" maxOccurs="1"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:readCourseSectionIdsFromSavePointRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#fromSavePoint
Properties
content: complex
Model cms:fromSavePoint
Children cms:fromSavePoint
Instance
<cms:readCourseSectionIdsFromSavePointRequest>
  <cms:fromSavePoint>{1,1}</cms:fromSavePoint>
</cms:readCourseSectionIdsFromSavePointRequest>
Source
<xs:element name="readCourseSectionIdsFromSavePointRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:fromSavePoint"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:readCourseSectionIdsFromSavePointResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedIdSet CourseManagementServiceSyncXSD.tmp#savePoint
Properties
content: complex
Model cms:sourcedIdSet{0,1} , cms:savePoint{0,1}
Children cms:savePoint, cms:sourcedIdSet
Instance
<cms:readCourseSectionIdsFromSavePointResponse>
  <cms:sourcedIdSet>{0,1}</cms:sourcedIdSet>
  <cms:savePoint>{0,1}</cms:savePoint>
</cms:readCourseSectionIdsFromSavePointResponse>
Source
<xs:element name="readCourseSectionIdsFromSavePointResponse">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedIdSet" minOccurs="0" maxOccurs="1"/>
      <xs:element ref="cms:savePoint" minOccurs="0" maxOccurs="1"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:readCourseSectionsRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedIdSet
Properties
content: complex
Model cms:sourcedIdSet
Children cms:sourcedIdSet
Instance
<cms:readCourseSectionsRequest>
  <cms:sourcedIdSet>{1,1}</cms:sourcedIdSet>
</cms:readCourseSectionsRequest>
Source
<xs:element name="readCourseSectionsRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedIdSet"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:readCourseSectionsResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#courseSectionRecordSet CourseManagementServiceSyncXSD.tmp#savePoint
Properties
content: complex
Model cms:courseSectionRecordSet{0,1} , cms:savePoint{0,1}
Children cms:courseSectionRecordSet, cms:savePoint
Instance
<cms:readCourseSectionsResponse>
  <cms:courseSectionRecordSet>{0,1}</cms:courseSectionRecordSet>
  <cms:savePoint>{0,1}</cms:savePoint>
</cms:readCourseSectionsResponse>
Source
<xs:element name="readCourseSectionsResponse">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:courseSectionRecordSet" minOccurs="0" maxOccurs="1"/>
      <xs:element ref="cms:savePoint" minOccurs="0" maxOccurs="1"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:readCourseSectionsFromSavePointRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#fromSavePoint
Properties
content: complex
Model cms:fromSavePoint
Children cms:fromSavePoint
Instance
<cms:readCourseSectionsFromSavePointRequest>
  <cms:fromSavePoint>{1,1}</cms:fromSavePoint>
</cms:readCourseSectionsFromSavePointRequest>
Source
<xs:element name="readCourseSectionsFromSavePointRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:fromSavePoint"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:readCourseSectionsFromSavePointResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#courseSectionRecordSet CourseManagementServiceSyncXSD.tmp#savePoint
Properties
content: complex
Model cms:courseSectionRecordSet{0,1} , cms:savePoint{0,1}
Children cms:courseSectionRecordSet, cms:savePoint
Instance
<cms:readCourseSectionsFromSavePointResponse>
  <cms:courseSectionRecordSet>{0,1}</cms:courseSectionRecordSet>
  <cms:savePoint>{0,1}</cms:savePoint>
</cms:readCourseSectionsFromSavePointResponse>
Source
<xs:element name="readCourseSectionsFromSavePointResponse">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:courseSectionRecordSet" minOccurs="0" maxOccurs="1"/>
      <xs:element ref="cms:savePoint" minOccurs="0" maxOccurs="1"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:updateCourseSectionRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedId CourseManagementServiceSyncXSD.tmp#courseSectionRecord
Properties
content: complex
Model cms:sourcedId , cms:courseSectionRecord
Children cms:courseSectionRecord, cms:sourcedId
Instance
<cms:updateCourseSectionRequest>
  <cms:sourcedId>{1,1}</cms:sourcedId>
  <cms:courseSectionRecord>{1,1}</cms:courseSectionRecord>
</cms:updateCourseSectionRequest>
Source
<xs:element name="updateCourseSectionRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedId"/>
      <xs:element ref="cms:courseSectionRecord"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:updateCourseSectionResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Source
<xs:element name="updateCourseSectionResponse"/>
[ top ]
Element cms:updateCourseSectionStatusRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedId CourseManagementServiceSyncXSD.tmp#status
Properties
content: complex
Model cms:sourcedId , cms:status
Children cms:sourcedId, cms:status
Instance
<cms:updateCourseSectionStatusRequest>
  <cms:sourcedId>{1,1}</cms:sourcedId>
  <cms:status>{1,1}</cms:status>
</cms:updateCourseSectionStatusRequest>
Source
<xs:element name="updateCourseSectionStatusRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedId"/>
      <xs:element ref="cms:status"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:updateCourseSectionStatusResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Source
<xs:element name="updateCourseSectionStatusResponse"/>
[ top ]
Element cms:replaceCourseSectionRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedId CourseManagementServiceSyncXSD.tmp#courseSectionRecord
Properties
content: complex
Model cms:sourcedId , cms:courseSectionRecord
Children cms:courseSectionRecord, cms:sourcedId
Instance
<cms:replaceCourseSectionRequest>
  <cms:sourcedId>{1,1}</cms:sourcedId>
  <cms:courseSectionRecord>{1,1}</cms:courseSectionRecord>
</cms:replaceCourseSectionRequest>
Source
<xs:element name="replaceCourseSectionRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedId"/>
      <xs:element ref="cms:courseSectionRecord"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:replaceCourseSectionResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Source
<xs:element name="replaceCourseSectionResponse"/>
[ top ]
Element cms:discoverCourseSectionIdsRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#queryObject
Properties
content: complex
Model cms:queryObject
Children cms:queryObject
Instance
<cms:discoverCourseSectionIdsRequest>
  <cms:queryObject>{1,1}</cms:queryObject>
</cms:discoverCourseSectionIdsRequest>
Source
<xs:element name="discoverCourseSectionIdsRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:queryObject"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:discoverCourseSectionIdsResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedIdSet
Properties
content: complex
Model cms:sourcedIdSet{0,1}
Children cms:sourcedIdSet
Instance
<cms:discoverCourseSectionIdsResponse>
  <cms:sourcedIdSet>{0,1}</cms:sourcedIdSet>
</cms:discoverCourseSectionIdsResponse>
Source
<xs:element name="discoverCourseSectionIdsResponse">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedIdSet" minOccurs="0" maxOccurs="1"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:changeCourseSectionIdentifierRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedId CourseManagementServiceSyncXSD.tmp#newSourcedId
Properties
content: complex
Model cms:sourcedId , cms:newSourcedId
Children cms:newSourcedId, cms:sourcedId
Instance
<cms:changeCourseSectionIdentifierRequest>
  <cms:sourcedId>{1,1}</cms:sourcedId>
  <cms:newSourcedId>{1,1}</cms:newSourcedId>
</cms:changeCourseSectionIdentifierRequest>
Source
<xs:element name="changeCourseSectionIdentifierRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedId"/>
      <xs:element ref="cms:newSourcedId"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:changeCourseSectionIdentifierResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Source
<xs:element name="changeCourseSectionIdentifierResponse"/>
[ top ]
Element cms:createSectionAssociationRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedId CourseManagementServiceSyncXSD.tmp#sectionAssociationRecord
Properties
content: complex
Model cms:sourcedId , cms:sectionAssociationRecord
Children cms:sectionAssociationRecord, cms:sourcedId
Instance
<cms:createSectionAssociationRequest>
  <cms:sourcedId>{1,1}</cms:sourcedId>
  <cms:sectionAssociationRecord>{1,1}</cms:sectionAssociationRecord>
</cms:createSectionAssociationRequest>
Source
<xs:element name="createSectionAssociationRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedId"/>
      <xs:element ref="cms:sectionAssociationRecord"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:createSectionAssociationResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Source
<xs:element name="createSectionAssociationResponse"/>
[ top ]
Element cms:createByProxySectionAssociationRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sectionAssociationRecord
Properties
content: complex
Model cms:sectionAssociationRecord
Children cms:sectionAssociationRecord
Instance
<cms:createByProxySectionAssociationRequest>
  <cms:sectionAssociationRecord>{1,1}</cms:sectionAssociationRecord>
</cms:createByProxySectionAssociationRequest>
Source
<xs:element name="createByProxySectionAssociationRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sectionAssociationRecord"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:createByProxySectionAssociationResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedId
Properties
content: complex
Model cms:sourcedId{0,1}
Children cms:sourcedId
Instance
<cms:createByProxySectionAssociationResponse>
  <cms:sourcedId>{0,1}</cms:sourcedId>
</cms:createByProxySectionAssociationResponse>
Source
<xs:element name="createByProxySectionAssociationResponse">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedId" minOccurs="0" maxOccurs="1"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:deleteSectionAssociationRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedId
Properties
content: complex
Model cms:sourcedId
Children cms:sourcedId
Instance
<cms:deleteSectionAssociationRequest>
  <cms:sourcedId>{1,1}</cms:sourcedId>
</cms:deleteSectionAssociationRequest>
Source
<xs:element name="deleteSectionAssociationRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedId"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:deleteSectionAssociationResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Source
<xs:element name="deleteSectionAssociationResponse"/>
[ top ]
Element cms:readSectionAssociationRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedId
Properties
content: complex
Model cms:sourcedId
Children cms:sourcedId
Instance
<cms:readSectionAssociationRequest>
  <cms:sourcedId>{1,1}</cms:sourcedId>
</cms:readSectionAssociationRequest>
Source
<xs:element name="readSectionAssociationRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedId"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:readSectionAssociationResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sectionAssociationRecord
Properties
content: complex
Model cms:sectionAssociationRecord{0,1}
Children cms:sectionAssociationRecord
Instance
<cms:readSectionAssociationResponse>
  <cms:sectionAssociationRecord>{0,1}</cms:sectionAssociationRecord>
</cms:readSectionAssociationResponse>
Source
<xs:element name="readSectionAssociationResponse">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sectionAssociationRecord" minOccurs="0" maxOccurs="1"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:readAllSectionAssociationIdsRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Source
<xs:element name="readAllSectionAssociationIdsRequest"/>
[ top ]
Element cms:readAllSectionAssociationIdsResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedIdSet
Properties
content: complex
Model cms:sourcedIdSet{0,1}
Children cms:sourcedIdSet
Instance
<cms:readAllSectionAssociationIdsResponse>
  <cms:sourcedIdSet>{0,1}</cms:sourcedIdSet>
</cms:readAllSectionAssociationIdsResponse>
Source
<xs:element name="readAllSectionAssociationIdsResponse">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedIdSet" minOccurs="0" maxOccurs="1"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:readSectionAssociationIdsFromSavePointRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#fromSavePoint
Properties
content: complex
Model cms:fromSavePoint
Children cms:fromSavePoint
Instance
<cms:readSectionAssociationIdsFromSavePointRequest>
  <cms:fromSavePoint>{1,1}</cms:fromSavePoint>
</cms:readSectionAssociationIdsFromSavePointRequest>
Source
<xs:element name="readSectionAssociationIdsFromSavePointRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:fromSavePoint"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:readSectionAssociationIdsFromSavePointResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedIdSet CourseManagementServiceSyncXSD.tmp#savePoint
Properties
content: complex
Model cms:sourcedIdSet{0,1} , cms:savePoint{0,1}
Children cms:savePoint, cms:sourcedIdSet
Instance
<cms:readSectionAssociationIdsFromSavePointResponse>
  <cms:sourcedIdSet>{0,1}</cms:sourcedIdSet>
  <cms:savePoint>{0,1}</cms:savePoint>
</cms:readSectionAssociationIdsFromSavePointResponse>
Source
<xs:element name="readSectionAssociationIdsFromSavePointResponse">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedIdSet" minOccurs="0" maxOccurs="1"/>
      <xs:element ref="cms:savePoint" minOccurs="0" maxOccurs="1"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:readSectionAssociationsRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedIdSet
Properties
content: complex
Model cms:sourcedIdSet
Children cms:sourcedIdSet
Instance
<cms:readSectionAssociationsRequest>
  <cms:sourcedIdSet>{1,1}</cms:sourcedIdSet>
</cms:readSectionAssociationsRequest>
Source
<xs:element name="readSectionAssociationsRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedIdSet"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:readSectionAssociationsResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sectionAssociationRecordSet CourseManagementServiceSyncXSD.tmp#savePoint
Properties
content: complex
Model cms:sectionAssociationRecordSet{0,1} , cms:savePoint{0,1}
Children cms:savePoint, cms:sectionAssociationRecordSet
Instance
<cms:readSectionAssociationsResponse>
  <cms:sectionAssociationRecordSet>{0,1}</cms:sectionAssociationRecordSet>
  <cms:savePoint>{0,1}</cms:savePoint>
</cms:readSectionAssociationsResponse>
Source
<xs:element name="readSectionAssociationsResponse">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sectionAssociationRecordSet" minOccurs="0" maxOccurs="1"/>
      <xs:element ref="cms:savePoint" minOccurs="0" maxOccurs="1"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:readSectionAssociationsFromSavePointRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#fromSavePoint
Properties
content: complex
Model cms:fromSavePoint
Children cms:fromSavePoint
Instance
<cms:readSectionAssociationsFromSavePointRequest>
  <cms:fromSavePoint>{1,1}</cms:fromSavePoint>
</cms:readSectionAssociationsFromSavePointRequest>
Source
<xs:element name="readSectionAssociationsFromSavePointRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:fromSavePoint"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:readSectionAssociationsFromSavePointResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sectionAssociationRecordSet CourseManagementServiceSyncXSD.tmp#savePoint
Properties
content: complex
Model cms:sectionAssociationRecordSet{0,1} , cms:savePoint{0,1}
Children cms:savePoint, cms:sectionAssociationRecordSet
Instance
<cms:readSectionAssociationsFromSavePointResponse>
  <cms:sectionAssociationRecordSet>{0,1}</cms:sectionAssociationRecordSet>
  <cms:savePoint>{0,1}</cms:savePoint>
</cms:readSectionAssociationsFromSavePointResponse>
Source
<xs:element name="readSectionAssociationsFromSavePointResponse">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sectionAssociationRecordSet" minOccurs="0" maxOccurs="1"/>
      <xs:element ref="cms:savePoint" minOccurs="0" maxOccurs="1"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:addCourseSectionIdRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sectionAssociationSourcedId CourseManagementServiceSyncXSD.tmp#courseSectionSourcedId
Properties
content: complex
Model cms:sectionAssociationSourcedId , cms:courseSectionSourcedId
Children cms:courseSectionSourcedId, cms:sectionAssociationSourcedId
Instance
<cms:addCourseSectionIdRequest>
  <cms:sectionAssociationSourcedId>{1,1}</cms:sectionAssociationSourcedId>
  <cms:courseSectionSourcedId>{1,1}</cms:courseSectionSourcedId>
</cms:addCourseSectionIdRequest>
Source
<xs:element name="addCourseSectionIdRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sectionAssociationSourcedId"/>
      <xs:element ref="cms:courseSectionSourcedId"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:addCourseSectionIdResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Source
<xs:element name="addCourseSectionIdResponse"/>
[ top ]
Element cms:removeCourseSectionIdRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sectionAssociationSourcedId CourseManagementServiceSyncXSD.tmp#courseSectionSourcedId
Properties
content: complex
Model cms:sectionAssociationSourcedId , cms:courseSectionSourcedId
Children cms:courseSectionSourcedId, cms:sectionAssociationSourcedId
Instance
<cms:removeCourseSectionIdRequest>
  <cms:sectionAssociationSourcedId>{1,1}</cms:sectionAssociationSourcedId>
  <cms:courseSectionSourcedId>{1,1}</cms:courseSectionSourcedId>
</cms:removeCourseSectionIdRequest>
Source
<xs:element name="removeCourseSectionIdRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sectionAssociationSourcedId"/>
      <xs:element ref="cms:courseSectionSourcedId"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:removeCourseSectionIdResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Source
<xs:element name="removeCourseSectionIdResponse"/>
[ top ]
Element cms:updateSectionAssociationRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedId CourseManagementServiceSyncXSD.tmp#sectionAssociationRecord
Properties
content: complex
Model cms:sourcedId , cms:sectionAssociationRecord
Children cms:sectionAssociationRecord, cms:sourcedId
Instance
<cms:updateSectionAssociationRequest>
  <cms:sourcedId>{1,1}</cms:sourcedId>
  <cms:sectionAssociationRecord>{1,1}</cms:sectionAssociationRecord>
</cms:updateSectionAssociationRequest>
Source
<xs:element name="updateSectionAssociationRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedId"/>
      <xs:element ref="cms:sectionAssociationRecord"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:updateSectionAssociationResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Source
<xs:element name="updateSectionAssociationResponse"/>
[ top ]
Element cms:replaceSectionAssociationRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedId CourseManagementServiceSyncXSD.tmp#sectionAssociationRecord
Properties
content: complex
Model cms:sourcedId , cms:sectionAssociationRecord
Children cms:sectionAssociationRecord, cms:sourcedId
Instance
<cms:replaceSectionAssociationRequest>
  <cms:sourcedId>{1,1}</cms:sourcedId>
  <cms:sectionAssociationRecord>{1,1}</cms:sectionAssociationRecord>
</cms:replaceSectionAssociationRequest>
Source
<xs:element name="replaceSectionAssociationRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedId"/>
      <xs:element ref="cms:sectionAssociationRecord"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:replaceSectionAssociationResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Source
<xs:element name="replaceSectionAssociationResponse"/>
[ top ]
Element cms:discoverSectionAssociationIdsRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#queryObject
Properties
content: complex
Model cms:queryObject
Children cms:queryObject
Instance
<cms:discoverSectionAssociationIdsRequest>
  <cms:queryObject>{1,1}</cms:queryObject>
</cms:discoverSectionAssociationIdsRequest>
Source
<xs:element name="discoverSectionAssociationIdsRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:queryObject"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:discoverSectionAssociationIdsResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedIdSet
Properties
content: complex
Model cms:sourcedIdSet{0,1}
Children cms:sourcedIdSet
Instance
<cms:discoverSectionAssociationIdsResponse>
  <cms:sourcedIdSet>{0,1}</cms:sourcedIdSet>
</cms:discoverSectionAssociationIdsResponse>
Source
<xs:element name="discoverSectionAssociationIdsResponse">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedIdSet" minOccurs="0" maxOccurs="1"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:changeSectionAssociationIdentifierRequest
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedId CourseManagementServiceSyncXSD.tmp#newSourcedId
Properties
content: complex
Model cms:sourcedId , cms:newSourcedId
Children cms:newSourcedId, cms:sourcedId
Instance
<cms:changeSectionAssociationIdentifierRequest>
  <cms:sourcedId>{1,1}</cms:sourcedId>
  <cms:newSourcedId>{1,1}</cms:newSourcedId>
</cms:changeSectionAssociationIdentifierRequest>
Source
<xs:element name="changeSectionAssociationIdentifierRequest">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="cms:sourcedId"/>
      <xs:element ref="cms:newSourcedId"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>
[ top ]
Element cms:changeSectionAssociationIdentifierResponse
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Source
<xs:element name="changeSectionAssociationIdentifierResponse"/>
[ top ]
Element cms:imsx_syncRequestHeaderInfo
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#imsx_version CourseManagementServiceSyncXSD.tmp#imsx_messageIdentifier CourseManagementServiceSyncXSD.tmp#imsx_RequestHeaderInfo.Type
Type cms:imsx_RequestHeaderInfo.Type
Properties
content: complex
mixed: false
Model cms:imsx_version , cms:imsx_messageIdentifier
Children cms:imsx_messageIdentifier, cms:imsx_version
Instance
<cms:imsx_syncRequestHeaderInfo>
  <cms:imsx_version>{1,1}</cms:imsx_version>
  <cms:imsx_messageIdentifier>{1,1}</cms:imsx_messageIdentifier>
</cms:imsx_syncRequestHeaderInfo>
Source
<xs:element name="imsx_syncRequestHeaderInfo" type="cms:imsx_RequestHeaderInfo.Type"/>
[ top ]
Element cms:imsx_syncResponseHeaderInfo
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#imsx_version CourseManagementServiceSyncXSD.tmp#imsx_messageIdentifier CourseManagementServiceSyncXSD.tmp#imsx_statusInfo CourseManagementServiceSyncXSD.tmp#imsx_ResponseHeaderInfo.Type
Type cms:imsx_ResponseHeaderInfo.Type
Properties
content: complex
mixed: false
Model cms:imsx_version , cms:imsx_messageIdentifier , cms:imsx_statusInfo
Children cms:imsx_messageIdentifier, cms:imsx_statusInfo, cms:imsx_version
Instance
<cms:imsx_syncResponseHeaderInfo>
  <cms:imsx_version>{1,1}</cms:imsx_version>
  <cms:imsx_messageIdentifier>{1,1}</cms:imsx_messageIdentifier>
  <cms:imsx_statusInfo>{1,1}</cms:imsx_statusInfo>
</cms:imsx_syncResponseHeaderInfo>
Source
<xs:element name="imsx_syncResponseHeaderInfo" type="cms:imsx_ResponseHeaderInfo.Type"/>
[ top ]
Simple Type cms:imsx_CodeMajor.Type
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration success
enumeration processing
enumeration failure
enumeration unsupported
Used by
Source
<xs:simpleType name="imsx_CodeMajor.Type">
  <xs:restriction base="xs:string">
    <xs:enumeration value="success"/>
    <xs:enumeration value="processing"/>
    <xs:enumeration value="failure"/>
    <xs:enumeration value="unsupported"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type cms:imsx_Severity.Type
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration status
enumeration warning
enumeration error
Used by
Source
<xs:simpleType name="imsx_Severity.Type">
  <xs:restriction base="xs:string">
    <xs:enumeration value="status"/>
    <xs:enumeration value="warning"/>
    <xs:enumeration value="error"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type cms:imsx_CodeMinorValue.Type
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration fullsuccess
enumeration createsuccess
enumeration nosourcedids
enumeration idallocfail
enumeration overflowfail
enumeration idallocinusefail
enumeration invaliddata
enumeration incompletedata
enumeration partialdatastorage
enumeration unknownobject
enumeration deletefailure
enumeration targetreadfailure
enumeration toomuchdata
enumeration savepointsyncerror
enumeration savepointerror
enumeration unknownquery
enumeration unknownvocabulary
enumeration unknownmdvocabulary
enumeration targetisbusy
enumeration unknownextension
enumeration unauthorizedrequest
enumeration linkfailure
enumeration unsupportedLIS
enumeration unsupportedLISoperation
Used by
Source
<xs:simpleType name="imsx_CodeMinorValue.Type">
  <xs:restriction base="xs:string">
    <xs:enumeration value="fullsuccess"/>
    <xs:enumeration value="createsuccess"/>
    <xs:enumeration value="nosourcedids"/>
    <xs:enumeration value="idallocfail"/>
    <xs:enumeration value="overflowfail"/>
    <xs:enumeration value="idallocinusefail"/>
    <xs:enumeration value="invaliddata"/>
    <xs:enumeration value="incompletedata"/>
    <xs:enumeration value="partialdatastorage"/>
    <xs:enumeration value="unknownobject"/>
    <xs:enumeration value="deletefailure"/>
    <xs:enumeration value="targetreadfailure"/>
    <xs:enumeration value="toomuchdata"/>
    <xs:enumeration value="savepointsyncerror"/>
    <xs:enumeration value="savepointerror"/>
    <xs:enumeration value="unknownquery"/>
    <xs:enumeration value="unknownvocabulary"/>
    <xs:enumeration value="unknownmdvocabulary"/>
    <xs:enumeration value="targetisbusy"/>
    <xs:enumeration value="unknownextension"/>
    <xs:enumeration value="unauthorizedrequest"/>
    <xs:enumeration value="linkfailure"/>
    <xs:enumeration value="unsupportedLIS"/>
    <xs:enumeration value="unsupportedLISoperation"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type cms:GWSVersionValue.Type
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration V1.0
Used by
Source
<xs:simpleType name="GWSVersionValue.Type">
  <xs:restriction base="xs:string">
    <xs:enumeration value="V1.0"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type cms:MediaMode.Type
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration uri
enumeration entityref
enumeration base64
Used by
Element cms:mediamode
Source
<xs:simpleType name="MediaMode.Type">
  <xs:restriction base="xs:string">
    <xs:enumeration value="uri"/>
    <xs:enumeration value="entityref"/>
    <xs:enumeration value="base64"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type cms:ContentRefType.Type
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration text
enumeration image
enumeration audio
enumeration video
enumeration application
enumeration applet
Used by
Source
<xs:simpleType name="ContentRefType.Type">
  <xs:restriction base="xs:string">
    <xs:enumeration value="text"/>
    <xs:enumeration value="image"/>
    <xs:enumeration value="audio"/>
    <xs:enumeration value="video"/>
    <xs:enumeration value="application"/>
    <xs:enumeration value="applet"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type cms:GUID.Type
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Type xs:normalizedString
Used by
Source
<xs:simpleType name="GUID.Type">
  <xs:restriction base="xs:normalizedString"/>
</xs:simpleType>
[ top ]
Simple Type cms:SequenceIdentifier.Type
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Type xs:dateTime
Used by
Source
<xs:simpleType name="SequenceIdentifier.Type">
  <xs:restriction base="xs:dateTime"/>
</xs:simpleType>
[ top ]
Simple Type cms:QueryObject.Type
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Diagram
Diagram
Type xs:normalizedString
Used by
Element cms:queryObject
Source
<xs:simpleType name="QueryObject.Type">
  <xs:restriction base="xs:normalizedString"/>
</xs:simpleType>
[ top ]
Complex Type cms:CourseOffering.Type
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Annotations

umldocumentation

The CourseOffering complexType is the container for the occurence of a course in a specific session e.g. term, semester, etc. A CourseTemplate can have several CourseOfferings and each CourseOffering can have several CourseSections.
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#label CourseManagementServiceSyncXSD.tmp#title CourseManagementServiceSyncXSD.tmp#parentTemplateId CourseManagementServiceSyncXSD.tmp#catalogDescription CourseManagementServiceSyncXSD.tmp#status CourseManagementServiceSyncXSD.tmp#defaultCredits CourseManagementServiceSyncXSD.tmp#academicSession CourseManagementServiceSyncXSD.tmp#org CourseManagementServiceSyncXSD.tmp#timeFrame CourseManagementServiceSyncXSD.tmp#enrollControl CourseManagementServiceSyncXSD.tmp#dataSource CourseManagementServiceSyncXSD.tmp#recordInfo CourseManagementServiceSyncXSD.tmp#extension
Properties
mixed: false
Used by
Model cms:label{0,1} , cms:title{0,1} , cms:parentTemplateId{0,1} , cms:catalogDescription{0,1} , cms:status{0,1} , cms:defaultCredits{0,1} , cms:academicSession{0,1} , cms:org{0,1} , cms:timeFrame* , cms:enrollControl{0,1} , cms:dataSource{0,1} , cms:recordInfo{0,1} , cms:extension{0,1}
Children cms:academicSession, cms:catalogDescription, cms:dataSource, cms:defaultCredits, cms:enrollControl, cms:extension, cms:label, cms:org, cms:parentTemplateId, cms:recordInfo, cms:status, cms:timeFrame, cms:title
Source
<xs:complexType name="CourseOffering.Type" mixed="false">
  <xs:annotation>
    <xs:documentation source="umldocumentation">The CourseOffering complexType is the container for the occurence of a course in a specific session e.g. term, semester, etc. A CourseTemplate can have several CourseOfferings and each CourseOffering can have several CourseSections.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="cms:label" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:title" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:parentTemplateId" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:catalogDescription" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:status" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:defaultCredits" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:academicSession" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:org" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:timeFrame" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element ref="cms:enrollControl" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:dataSource" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:recordInfo" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:extension" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type cms:Text.Type
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Annotations

umldocumentation

The Text complexType is the container for a language specific string. The language is denoted using an external vocabulary containing the permitted codes (based upon RFC4646).
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#language CourseManagementServiceSyncXSD.tmp#textString
Properties
mixed: false
Used by
Model cms:language , cms:textString
Children cms:language, cms:textString
Source
<xs:complexType name="Text.Type" mixed="false">
  <xs:annotation>
    <xs:documentation source="umldocumentation">The Text complexType is the container for a language specific string. The language is denoted using an external vocabulary containing the permitted codes (based upon RFC4646).</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="cms:language" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="cms:textString" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type cms:Description.Type
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Annotations

umldocumentation

The Description complexType is the container for all of the material that is used to describe something. It has short (text), long (text) and full (multimedia) forms.
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#shortDescription CourseManagementServiceSyncXSD.tmp#longDescription CourseManagementServiceSyncXSD.tmp#fullDescription
Properties
mixed: false
Used by
Model cms:shortDescription , cms:longDescription{0,1} , cms:fullDescription{0,1}
Children cms:fullDescription, cms:longDescription, cms:shortDescription
Source
<xs:complexType name="Description.Type" mixed="false">
  <xs:annotation>
    <xs:documentation source="umldocumentation">The Description complexType is the container for all of the material that is used to describe something. It has short (text), long (text) and full (multimedia) forms.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="cms:shortDescription" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="cms:longDescription" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:fullDescription" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type cms:FullDescription.Type
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Annotations

umldocumentation

The FullDescription complexType is the container for the multmedia-based description.
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#mediamode CourseManagementServiceSyncXSD.tmp#contentRefType CourseManagementServiceSyncXSD.tmp#mimeType CourseManagementServiceSyncXSD.tmp#descriptionText
Properties
mixed: false
Used by
Model cms:mediamode , cms:contentRefType , cms:mimeType , cms:descriptionText
Children cms:contentRefType, cms:descriptionText, cms:mediamode, cms:mimeType
Source
<xs:complexType name="FullDescription.Type" mixed="false">
  <xs:annotation>
    <xs:documentation source="umldocumentation">The FullDescription complexType is the container for the multmedia-based description.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="cms:mediamode" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="cms:contentRefType" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="cms:mimeType" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="cms:descriptionText" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type cms:Org.Type
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Annotations

umldocumentation

The Org complexType is the container for data about the organization that 'owns' the course structure.
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#orgName CourseManagementServiceSyncXSD.tmp#orgUnit CourseManagementServiceSyncXSD.tmp#type CourseManagementServiceSyncXSD.tmp#id
Properties
mixed: false
Used by
Element cms:org
Model cms:orgName{0,1} , cms:orgUnit{0,1} , cms:type{0,1} , cms:id{0,1}
Children cms:id, cms:orgName, cms:orgUnit, cms:type
Source
<xs:complexType name="Org.Type" mixed="false">
  <xs:annotation>
    <xs:documentation source="umldocumentation">The Org complexType is the container for data about the organization that 'owns' the course structure.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="cms:orgName" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:orgUnit" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:type" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:id" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type cms:TimeFrame.Type
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Annotations

umldocumentation

The TimeFrame complexType is the container for time information about the course component.
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#begin CourseManagementServiceSyncXSD.tmp#end CourseManagementServiceSyncXSD.tmp#restrict CourseManagementServiceSyncXSD.tmp#adminPeriod
Properties
mixed: false
Used by
Element cms:timeFrame
Model cms:begin{0,1} , cms:end{0,1} , cms:restrict{0,1} , cms:adminPeriod{0,1}
Children cms:adminPeriod, cms:begin, cms:end, cms:restrict
Source
<xs:complexType name="TimeFrame.Type" mixed="false">
  <xs:annotation>
    <xs:documentation source="umldocumentation">The TimeFrame complexType is the container for time information about the course component.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="cms:begin" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:end" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:restrict" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:adminPeriod" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type cms:EnrollControl.Type
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Annotations

umldocumentation

The EnrollControl complexType is the container for the data that is used to control enrollment on the associated activity.
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#enrollAccept CourseManagementServiceSyncXSD.tmp#enrollAllowed
Properties
mixed: false
Used by
Model cms:enrollAccept{0,1} , cms:enrollAllowed{0,1}
Children cms:enrollAccept, cms:enrollAllowed
Source
<xs:complexType name="EnrollControl.Type" mixed="false">
  <xs:annotation>
    <xs:documentation source="umldocumentation">The EnrollControl complexType is the container for the data that is used to control enrollment on the associated activity.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="cms:enrollAccept" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:enrollAllowed" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type cms:Metadata.Type
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Annotations

umldocumentation

The Metadata complexType is the container for meta-data that is used to describe an object. At the current time this is just a set of name/type/value triples.
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#metadataNameVocabulary CourseManagementServiceSyncXSD.tmp#metadataTypeVocabulary CourseManagementServiceSyncXSD.tmp#extensionField
Properties
mixed: false
Used by
Element cms:recordInfo
Model cms:metadataNameVocabulary , cms:metadataTypeVocabulary , cms:extensionField+
Children cms:extensionField, cms:metadataNameVocabulary, cms:metadataTypeVocabulary
Source
<xs:complexType name="Metadata.Type" mixed="false">
  <xs:annotation>
    <xs:documentation source="umldocumentation">The Metadata complexType is the container for meta-data that is used to describe an object. At the current time this is just a set of name/type/value triples.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="cms:metadataNameVocabulary" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="cms:metadataTypeVocabulary" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="cms:extensionField" minOccurs="1" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type cms:ExtensionField.Type
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Annotations

umldocumentation

The ExtensionField complexType is the container for each of the extension points. This is a name/type/value triple.
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#fieldName CourseManagementServiceSyncXSD.tmp#fieldType CourseManagementServiceSyncXSD.tmp#fieldValue
Properties
mixed: false
Used by
Model cms:fieldName , cms:fieldType , cms:fieldValue
Children cms:fieldName, cms:fieldType, cms:fieldValue
Source
<xs:complexType name="ExtensionField.Type" mixed="false">
  <xs:annotation>
    <xs:documentation source="umldocumentation">The ExtensionField complexType is the container for each of the extension points. This is a name/type/value triple.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="cms:fieldName" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="cms:fieldType" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="cms:fieldValue" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type cms:IMSExtension.Type
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Annotations

umldocumentation

The IMSExtension complexType is the container for the set of extension information.
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#extensionNameVocabulary CourseManagementServiceSyncXSD.tmp#extensionTypeVocabulary CourseManagementServiceSyncXSD.tmp#extensionField
Properties
mixed: false
Used by
Element cms:extension
Model cms:extensionNameVocabulary , cms:extensionTypeVocabulary , cms:extensionField+
Children cms:extensionField, cms:extensionNameVocabulary, cms:extensionTypeVocabulary
Source
<xs:complexType name="IMSExtension.Type" mixed="false">
  <xs:annotation>
    <xs:documentation source="umldocumentation">The IMSExtension complexType is the container for the set of extension information.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="cms:extensionNameVocabulary" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="cms:extensionTypeVocabulary" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="cms:extensionField" minOccurs="1" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type cms:CourseOfferingRecord.Type
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Annotations

umldocumentation

The CourseOfferingRecord complexType is the container for the relationship between the GUID of the CourseOffering object and the object itself.
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedGUID CourseManagementServiceSyncXSD.tmp#courseOffering
Properties
mixed: false
Used by
Model cms:sourcedGUID , cms:courseOffering
Children cms:courseOffering, cms:sourcedGUID
Source
<xs:complexType name="CourseOfferingRecord.Type" mixed="false">
  <xs:annotation>
    <xs:documentation source="umldocumentation">The CourseOfferingRecord complexType is the container for the relationship between the GUID of the CourseOffering object and the object itself.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="cms:sourcedGUID" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="cms:courseOffering" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type cms:SourcedGUID.Type
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Annotations

umldocumentation

The SourcedGUID complexType is the container for the extended sourcedId. The extension is the reference agent instance identifier.
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#refAgentInstanceID CourseManagementServiceSyncXSD.tmp#sourcedId
Properties
mixed: false
Used by
Element cms:sourcedGUID
Model cms:refAgentInstanceID{0,1} , cms:sourcedId
Children cms:refAgentInstanceID, cms:sourcedId
Source
<xs:complexType name="SourcedGUID.Type" mixed="false">
  <xs:annotation>
    <xs:documentation source="umldocumentation">The SourcedGUID complexType is the container for the extended sourcedId. The extension is the reference agent instance identifier.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="cms:refAgentInstanceID" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:sourcedId" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type cms:CourseOfferingRecordSet.Type
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Annotations

umldocumentation

The CourseOfferingRecordSet is the complexType for the set of CourseOfferingRecords.
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#courseOfferingRecord
Properties
mixed: false
Used by
Model cms:courseOfferingRecord*
Children cms:courseOfferingRecord
Source
<xs:complexType name="CourseOfferingRecordSet.Type" mixed="false">
  <xs:annotation>
    <xs:documentation source="umldocumentation">The CourseOfferingRecordSet is the complexType for the set of CourseOfferingRecords.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="cms:courseOfferingRecord" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type cms:CourseSection.Type
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Annotations

umldocumentation

The CourseSection complexType is a way to represent a group of people associated with a course or class. These groups may include everyone in the class or course, or may be subsets of that whole group. CourseSections may have sub-sections (these are created as separate Group objects linked using a relationship).
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#label CourseManagementServiceSyncXSD.tmp#title CourseManagementServiceSyncXSD.tmp#parentOfferingId CourseManagementServiceSyncXSD.tmp#catalogDescription CourseManagementServiceSyncXSD.tmp#status CourseManagementServiceSyncXSD.tmp#defaultCredits CourseManagementServiceSyncXSD.tmp#category CourseManagementServiceSyncXSD.tmp#maxNumberofStudents CourseManagementServiceSyncXSD.tmp#numberofStudents CourseManagementServiceSyncXSD.tmp#academicSession CourseManagementServiceSyncXSD.tmp#org CourseManagementServiceSyncXSD.tmp#timeFrame CourseManagementServiceSyncXSD.tmp#enrollControl CourseManagementServiceSyncXSD.tmp#location CourseManagementServiceSyncXSD.tmp#notes CourseManagementServiceSyncXSD.tmp#meeting CourseManagementServiceSyncXSD.tmp#dataSource CourseManagementServiceSyncXSD.tmp#recordInfo CourseManagementServiceSyncXSD.tmp#extension
Properties
mixed: false
Used by
Model cms:label{0,1} , cms:title{0,1} , cms:parentOfferingId{0,1} , cms:catalogDescription{0,1} , cms:status{0,1} , cms:defaultCredits{0,1} , cms:category{0,1} , cms:maxNumberofStudents{0,1} , cms:numberofStudents{0,1} , cms:academicSession{0,1} , cms:org{0,1} , cms:timeFrame* , cms:enrollControl{0,1} , cms:location{0,1} , cms:notes{0,1} , cms:meeting{0,1} , cms:dataSource{0,1} , cms:recordInfo{0,1} , cms:extension{0,1}
Children cms:academicSession, cms:catalogDescription, cms:category, cms:dataSource, cms:defaultCredits, cms:enrollControl, cms:extension, cms:label, cms:location, cms:maxNumberofStudents, cms:meeting, cms:notes, cms:numberofStudents, cms:org, cms:parentOfferingId, cms:recordInfo, cms:status, cms:timeFrame, cms:title
Source
<xs:complexType name="CourseSection.Type" mixed="false">
  <xs:annotation>
    <xs:documentation source="umldocumentation">The CourseSection complexType is a way to represent a group of people associated with a course or class. These groups may include everyone in the class or course, or may be subsets of that whole group. CourseSections may have sub-sections (these are created as separate Group objects linked using a relationship).</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="cms:label" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:title" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:parentOfferingId" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:catalogDescription" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:status" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:defaultCredits" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:category" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:maxNumberofStudents" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:numberofStudents" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:academicSession" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:org" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:timeFrame" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element ref="cms:enrollControl" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:location" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:notes" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:meeting" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:dataSource" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:recordInfo" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:extension" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type cms:CourseSectionRecord.Type
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Annotations

umldocumentation

The CourseSectionRecord is the complexType for the relationship between the GUID for the CourseSection Record object and the object itself.
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedGUID CourseManagementServiceSyncXSD.tmp#courseSection
Properties
mixed: false
Used by
Model cms:sourcedGUID , cms:courseSection
Children cms:courseSection, cms:sourcedGUID
Source
<xs:complexType name="CourseSectionRecord.Type" mixed="false">
  <xs:annotation>
    <xs:documentation source="umldocumentation">The CourseSectionRecord is the complexType for the relationship between the GUID for the CourseSection Record object and the object itself.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="cms:sourcedGUID" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="cms:courseSection" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type cms:CourseSectionRecordSet.Type
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Annotations

umldocumentation

A CourseSectionRecordSet is the complexType for the collecyion of a set of CourseSectionREcords.
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#courseSectionRecord
Properties
mixed: false
Used by
Model cms:courseSectionRecord*
Children cms:courseSectionRecord
Source
<xs:complexType name="CourseSectionRecordSet.Type" mixed="false">
  <xs:annotation>
    <xs:documentation source="umldocumentation">A CourseSectionRecordSet is the complexType for the collecyion of a set of CourseSectionREcords.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="cms:courseSectionRecord" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type cms:CourseTemplate.Type
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Annotations

umldocumentation

The CourseTemplate complexType is the top-level container for the Course Template data model. A CourseTemplate is a general course that exists across terms, semesters, etc. It is an abstract course representation.
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#label CourseManagementServiceSyncXSD.tmp#title CourseManagementServiceSyncXSD.tmp#catalogDescription CourseManagementServiceSyncXSD.tmp#courseNumber CourseManagementServiceSyncXSD.tmp#status CourseManagementServiceSyncXSD.tmp#defaultCredits CourseManagementServiceSyncXSD.tmp#org CourseManagementServiceSyncXSD.tmp#listofTopics CourseManagementServiceSyncXSD.tmp#listofPrerequisites CourseManagementServiceSyncXSD.tmp#dataSource CourseManagementServiceSyncXSD.tmp#recordInfo CourseManagementServiceSyncXSD.tmp#extension
Properties
mixed: false
Used by
Model cms:label{0,1} , cms:title{0,1} , cms:catalogDescription{0,1} , cms:courseNumber{0,1} , cms:status{0,1} , cms:defaultCredits{0,1} , cms:org{0,1} , cms:listofTopics{0,1} , cms:listofPrerequisites{0,1} , cms:dataSource{0,1} , cms:recordInfo{0,1} , cms:extension{0,1}
Children cms:catalogDescription, cms:courseNumber, cms:dataSource, cms:defaultCredits, cms:extension, cms:label, cms:listofPrerequisites, cms:listofTopics, cms:org, cms:recordInfo, cms:status, cms:title
Source
<xs:complexType name="CourseTemplate.Type" mixed="false">
  <xs:annotation>
    <xs:documentation source="umldocumentation">The CourseTemplate complexType is the top-level container for the Course Template data model. A CourseTemplate is a general course that exists across terms, semesters, etc. It is an abstract course representation.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="cms:label" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:title" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:catalogDescription" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:courseNumber" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:status" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:defaultCredits" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:org" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:listofTopics" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:listofPrerequisites" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:dataSource" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:recordInfo" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:extension" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type cms:ListofTopics.Type
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Annotations

umldocumentation

The ListofTopics complexType is the container for the list of topics that are covered in a Course derived from the CourseTemplate.
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#topic
Properties
mixed: false
Used by
Model cms:topic+
Children cms:topic
Source
<xs:complexType name="ListofTopics.Type" mixed="false">
  <xs:annotation>
    <xs:documentation source="umldocumentation">The ListofTopics complexType is the container for the list of topics that are covered in a Course derived from the CourseTemplate.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="cms:topic" minOccurs="1" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type cms:ListofPrerequisites.Type
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Annotations

umldocumentation

The ListofPrerequisities complexType is the container for the set of pre-reqisities fr the CourseTemplae.
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#prerequisite
Properties
mixed: false
Used by
Model cms:prerequisite+
Children cms:prerequisite
Source
<xs:complexType name="ListofPrerequisites.Type" mixed="false">
  <xs:annotation>
    <xs:documentation source="umldocumentation">The ListofPrerequisities complexType is the container for the set of pre-reqisities fr the CourseTemplae.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="cms:prerequisite" minOccurs="1" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type cms:CourseTemplateRecord.Type
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Annotations

umldocumentation

The CourseTemplateRecord complexType is the container for the association between the GUID of the CourseTemplate and the object itself.
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedGUID CourseManagementServiceSyncXSD.tmp#courseTemplate
Properties
mixed: false
Used by
Model cms:sourcedGUID , cms:courseTemplate
Children cms:courseTemplate, cms:sourcedGUID
Source
<xs:complexType name="CourseTemplateRecord.Type" mixed="false">
  <xs:annotation>
    <xs:documentation source="umldocumentation">The CourseTemplateRecord complexType is the container for the association between the GUID of the CourseTemplate and the object itself.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="cms:sourcedGUID" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="cms:courseTemplate" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type cms:CourseTemplateRecordSet.Type
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Annotations

umldocumentation

The CourseTemplateRecordSet is the complexType for the set of CourseTemplateRecords.
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#courseTemplateRecord
Properties
mixed: false
Used by
Model cms:courseTemplateRecord*
Children cms:courseTemplateRecord
Source
<xs:complexType name="CourseTemplateRecordSet.Type" mixed="false">
  <xs:annotation>
    <xs:documentation source="umldocumentation">The CourseTemplateRecordSet is the complexType for the set of CourseTemplateRecords.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="cms:courseTemplateRecord" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type cms:GUIDSet.Type
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Annotations

umldocumentation

The GUIDSet complexType is the container for the set of GUIDs.
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedId
Properties
mixed: false
Used by
Model cms:sourcedId*
Children cms:sourcedId
Source
<xs:complexType name="GUIDSet.Type" mixed="false">
  <xs:annotation>
    <xs:documentation source="umldocumentation">The GUIDSet complexType is the container for the set of GUIDs.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="cms:sourcedId" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type cms:imsx_CodeMinor.Type
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Annotations

umldocumentation

The CodeMinor complexType is the container for the set of code minor status codes reported in the associated IMS SOAP message header.
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#imsx_codeMinorField
Properties
mixed: false
Used by
Model cms:imsx_codeMinorField+
Children cms:imsx_codeMinorField
Source
<xs:complexType name="imsx_CodeMinor.Type" mixed="false">
  <xs:annotation>
    <xs:documentation source="umldocumentation">The CodeMinor complexType is the container for the set of code minor status codes reported in the associated IMS SOAP message header.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="cms:imsx_codeMinorField" minOccurs="1" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type cms:imsx_CodeMinorField.Type
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Annotations

umldocumentation

The CodeMinorField complexType is the container a single code minor status code.
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#imsx_codeMinorFieldName CourseManagementServiceSyncXSD.tmp#imsx_codeMinorFieldValue
Properties
mixed: false
Used by
Model cms:imsx_codeMinorFieldName , cms:imsx_codeMinorFieldValue
Children cms:imsx_codeMinorFieldName, cms:imsx_codeMinorFieldValue
Source
<xs:complexType name="imsx_CodeMinorField.Type" mixed="false">
  <xs:annotation>
    <xs:documentation source="umldocumentation">The CodeMinorField complexType is the container a single code minor status code.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="cms:imsx_codeMinorFieldName" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="cms:imsx_codeMinorFieldValue" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type cms:imsx_RequestHeaderInfo.Type
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Annotations

umldocumentation

The RequestHeaderInfo complexType is the container for the information to be placed in the SOAP header for the request message transmitted for the associated operation call.
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#imsx_version CourseManagementServiceSyncXSD.tmp#imsx_messageIdentifier
Properties
mixed: false
Used by
Model cms:imsx_version , cms:imsx_messageIdentifier
Children cms:imsx_messageIdentifier, cms:imsx_version
Source
<xs:complexType name="imsx_RequestHeaderInfo.Type" mixed="false">
  <xs:annotation>
    <xs:documentation source="umldocumentation">The RequestHeaderInfo complexType is the container for the information to be placed in the SOAP header for the request message transmitted for the associated operation call.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="cms:imsx_version" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="cms:imsx_messageIdentifier" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type cms:imsx_ResponseHeaderInfo.Type
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Annotations

umldocumentation

The ResponseHeaderInfo complexType is the container for the information to be placed in the SOAP header for the response message transmitted for the associated operation call.
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#imsx_version CourseManagementServiceSyncXSD.tmp#imsx_messageIdentifier CourseManagementServiceSyncXSD.tmp#imsx_statusInfo
Properties
mixed: false
Used by
Model cms:imsx_version , cms:imsx_messageIdentifier , cms:imsx_statusInfo
Children cms:imsx_messageIdentifier, cms:imsx_statusInfo, cms:imsx_version
Source
<xs:complexType name="imsx_ResponseHeaderInfo.Type" mixed="false">
  <xs:annotation>
    <xs:documentation source="umldocumentation">The ResponseHeaderInfo complexType is the container for the information to be placed in the SOAP header for the response message transmitted for the associated operation call.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="cms:imsx_version" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="cms:imsx_messageIdentifier" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="cms:imsx_statusInfo" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type cms:imsx_StatusInfo.Type
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Annotations

umldocumentation

The StatusInfo complexType is the container for the status code and associated information returned within the SOAP message as defined by the IMS GWSv1.0 specification.
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#imsx_codeMajor CourseManagementServiceSyncXSD.tmp#imsx_severity CourseManagementServiceSyncXSD.tmp#imsx_messageRefIdentifier CourseManagementServiceSyncXSD.tmp#imsx_operationRefIdentifier CourseManagementServiceSyncXSD.tmp#imsx_description CourseManagementServiceSyncXSD.tmp#imsx_codeMinor
Properties
mixed: false
Used by
Model cms:imsx_codeMajor , cms:imsx_severity , cms:imsx_messageRefIdentifier , cms:imsx_operationRefIdentifier* , cms:imsx_description{0,1} , cms:imsx_codeMinor{0,1}
Children cms:imsx_codeMajor, cms:imsx_codeMinor, cms:imsx_description, cms:imsx_messageRefIdentifier, cms:imsx_operationRefIdentifier, cms:imsx_severity
Source
<xs:complexType name="imsx_StatusInfo.Type" mixed="false">
  <xs:annotation>
    <xs:documentation source="umldocumentation">The StatusInfo complexType is the container for the status code and associated information returned within the SOAP message as defined by the IMS GWSv1.0 specification.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="cms:imsx_codeMajor" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="cms:imsx_severity" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="cms:imsx_messageRefIdentifier" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="cms:imsx_operationRefIdentifier" minOccurs="0" maxOccurs="unbounded"/>
    <xs:element ref="cms:imsx_description" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:imsx_codeMinor" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type cms:ListofCourseSectionIds.Type
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Annotations

umldocumentation

The ListofCourseSectionIds complexType is the container for the list of associated CourseSections.
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#courseSectionId
Properties
mixed: false
Used by
Model cms:courseSectionId+
Children cms:courseSectionId
Source
<xs:complexType name="ListofCourseSectionIds.Type" mixed="false">
  <xs:annotation>
    <xs:documentation source="umldocumentation">The ListofCourseSectionIds complexType is the container for the list of associated CourseSections.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="cms:courseSectionId" minOccurs="1" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type cms:SectionAssociation.Type
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Annotations

umldocumentation

The SectionAssociation complexType is used to contain the identity of a set of associated CourseSections. This includes the label, title and status of the SectionAssociation.
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#label CourseManagementServiceSyncXSD.tmp#title CourseManagementServiceSyncXSD.tmp#status CourseManagementServiceSyncXSD.tmp#courseSectionIdList CourseManagementServiceSyncXSD.tmp#dataSource CourseManagementServiceSyncXSD.tmp#recordInfo CourseManagementServiceSyncXSD.tmp#extension
Properties
mixed: false
Used by
Model cms:label{0,1} , cms:title{0,1} , cms:status{0,1} , cms:courseSectionIdList{0,1} , cms:dataSource{0,1} , cms:recordInfo{0,1} , cms:extension{0,1}
Children cms:courseSectionIdList, cms:dataSource, cms:extension, cms:label, cms:recordInfo, cms:status, cms:title
Source
<xs:complexType name="SectionAssociation.Type" mixed="false">
  <xs:annotation>
    <xs:documentation source="umldocumentation">The SectionAssociation complexType is used to contain the identity of a set of associated CourseSections. This includes the label, title and status of the SectionAssociation.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="cms:label" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:title" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:status" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:courseSectionIdList" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:dataSource" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:recordInfo" minOccurs="0" maxOccurs="1"/>
    <xs:element ref="cms:extension" minOccurs="0" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type cms:SectionAssociationRecord.Type
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Annotations

umldocumentation

The SectionAssociationRecord is the container for the relationship between the GUID of the SectionAssociation object and the object itself.
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sourcedGUID CourseManagementServiceSyncXSD.tmp#sectionAssociation
Properties
mixed: false
Used by
Model cms:sourcedGUID , cms:sectionAssociation
Children cms:sectionAssociation, cms:sourcedGUID
Source
<xs:complexType name="SectionAssociationRecord.Type" mixed="false">
  <xs:annotation>
    <xs:documentation source="umldocumentation">The SectionAssociationRecord is the container for the relationship between the GUID of the SectionAssociation object and the object itself.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="cms:sourcedGUID" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="cms:sectionAssociation" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type cms:SectionAssociationRecordSet.Type
Namespace http://www.imsglobal.org/services/lis/cmsv1p0/xsd/imscms_v1p0
Annotations

umldocumentation

The SectionAssociationrecordSet complexType is the container for the collection of SectionAssociationRecords.
Diagram
Diagram CourseManagementServiceSyncXSD.tmp#sectionAssociationRecord
Properties
mixed: false
Used by
Model cms:sectionAssociationRecord*
Children cms:sectionAssociationRecord
Source
<xs:complexType name="SectionAssociationRecordSet.Type" mixed="false">
  <xs:annotation>
    <xs:documentation source="umldocumentation">The SectionAssociationrecordSet complexType is the container for the collection of SectionAssociationRecords.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="cms:sectionAssociationRecord" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
[ top ]
