5.2 File Data Model XSD Documentation

Group by:

http://www.imsglobal.org/services/lis/bdemsv1p0/imsbdemsFileData_v1p0

Main schema imsbdemsFileData_v1p0.xsd
Namespace http://www.imsglobal.org/services/lis/bdemsv1p0/imsbdemsFileData_v1p0
Annotations

XSD Data File Information

            Author:         Colin Smythe
            Date:           30th June, 2011
            Version:        Final 1.0
            Status:         Final Release
            Description:    The external file data model of the Bulk Data Exchange Management Service (BDEMS).
                            This forms a part of the IMS Learning Information Services (LIS) v2.0 specification.

            History:        Version 1.0: The first formal release of this PSM binding.  This is a new Service specification.

            License:        IPR, License and Distribution Notices

                            This machine readable file is derived from IMS Global Learning Consortium (GLC) specification IMS [spec name] Version [x.x]
                            found at http://www.imsglobal.org/[xxx] and the original IMS GLC schema binding or code base
                            http://www.imsglobal.org/[binding document].

                            Recipients of this document are requested to submit, with their comments, notification of any
                            relevant patent claims or other intellectual property rights of which they may be aware that might be
                            infringed by the schema binding contained in this document.

                            IMS GLC takes no position regarding the validity or scope of any intellectual property or other
                            rights that might be claimed to pertain to the implementation or use of the technology described in this
                            document or the extent to which any license under such rights might or might not be available; neither
                            does it represent that it has made any effort to identify any such rights. Information on IMS GLCs
                            procedures with respect to rights in IMS GLC specifications can be found at the IMS GLC Intellectual Property
                            Rights web page: http://www.imsglobal.org/ipr/imsipr_policyFinal.pdf.

                            Copyright (c) IMS Global Learning Consortium 1999-2011. All Rights Reserved.

                            License Notice for Users

                            Users of products or services that include this document are hereby granted a worldwide, royalty-free,
                            non-exclusive license to use this document.

                            Distribution Notice for Developers

                            Developers of products or services that are not original incorporators of this document and
                            have not changed this document, that is, are distributing a software product that incorporates this
                            document as is from a third-party source other than IMS, are hereby granted permission to copy,
                            display and distribute the contents of this document in any medium for any purpose without fee or
                            royalty provided that you include this IPR, License and Distribution notice in its entirety on ALL
                            copies, or portions thereof.

                            Developers of products or services that are original incorporators of this document and wish
                            to provide distribution of this document as is or with modifications and developers of products and
                            services that are not original incorporators of this document and have changed this document, are
                            required to register with the IMS GLC community on the IMS GLC website as described in the following two
                            paragraphs:-

                            *  If you wish to distribute this document as is, with no modifications, you are hereby granted
                               permission to copy, display and distribute the contents of this document in any medium for any
                               purpose without fee or royalty provided that you include this IPR, License and Distribution notice in
                               its entirety on ALL copies, or portions thereof, that you make and you complete a valid license
                               registration with IMS and receive an email from IMS granting the license. To register, follow the
                               instructions on the IMS website: http://www.imsglobal.org/specificationdownload.cfm. Once
                               registered you are granted permission to transfer unlimited distribution rights of this document for the
                               purposes of third-party or other distribution of your product or service that incorporates this
                               document as long as this IPR, License and Distribution notice remains in place in its entirety;

                            *  If you wish to create and distribute a derived work from this document, you are hereby
                               granted permission to copy, display and distribute the contents of the derived work in any medium for
                               any purpose without fee or royalty provided that you include this IPR, License and Distribution
                               notice in its entirety on ALL copies, or portions thereof, that you make and you complete a valid
                               profile registration with IMS GLC and receive an email from IMS GLC granting the license. To register, follow
                               the instructions on the IMS GLC website: http://www.imsglobal.org/profile/. Once registered you are
                               granted permission to transfer unlimited distribution rights of the derived work for the purposes of
                               third-party or other distribution of your product or service that incorporates the derived work as long
                               as this IPR, License and Distribution notice remains in place in its entirety.

                            The limited permissions granted above are perpetual and will not be revoked by IMS GLC or its
                            successors or assigns.

                            THIS SPECIFICATION IS BEING OFFERED WITHOUT ANY WARRANTY WHATSOEVER, AND IN PARTICULAR, ANY WARRANTY OF NONINFRINGEMENT IS
                            EXPRESSLY DISCLAIMED. ANY USE OF THIS SPECIFICATION SHALL BE MADE ENTIRELY AT THE IMPLEMENTERS OWN RISK, AND NEITHER THE CONSORTIUM
                            NOR ANY OF ITS MEMBERS OR SUBMITTERS, SHALL HAVE ANY LIABILITY WHATSOEVER TO ANY IMPLEMENTER OR THIRD PARTY FOR ANY DAMAGES OF
                            ANY NATURE WHATSOEVER, DIRECTLY OR INDIRECTLY, ARISING FROM THE USE OF THIS SPECIFICATION.

            Source UML File Information
            ---------------------------
            The source file information must be supplied as an XMI file (without diagram layout information).
            The supported UML authoring tools are:
            (a) Poseidon - v6 (and later)

            Source XSLT File Information
            ----------------------------
            XSL Generator:    UMLtoXSDTransformv0p9p5.xsl
            XSLT Processor:   Xalan
            Release:          1.0 Beta 4
            Date:             31st March, 2011

            IMS GLC Auto-generation Binding Tool-kit (I-BAT)
            ------------------------------------------------
            This file was auto-generated using the IMS GLC Binding Auto-generation Tool-kit (I-BAT).  While every
            attempt has been made to ensure that this tool auto-generates the files correctly, users should be aware
            that this is an experimental tool.  Permission is given to make use of this tool.  IMS GLC makes no
            claim on the materials created by third party users of this tool.  Details on how to use this tool
            are contained in the IMS GLC "I-BAT" Documentation available at the IMS GLC web-site.

            Tool Copyright:  2005-2011 (c) IMS Global Learning Consortium Inc.  All Rights Reserved.
Properties
attribute form default: unqualified
element form default: qualified
version: IMS BDEMS 1.0
[ top ]
Element serviceName
Namespace http://www.imsglobal.org/services/lis/bdemsv1p0/imsbdemsFileData_v1p0
Diagram
Diagram imsbdemsFileData_v1p0.tmp#ServiceNameValue.Type
Type ServiceNameValue.Type
Properties
content: simple
Facets
enumeration pmsv2p0
enumeration gmsv2p0
enumeration mmsv2p0
enumeration cmsv1p0
enumeration omsv1p0
Used by
Complex Type TransactionRecord.Type
Source

<xs:element name="serviceName" type="ServiceNameValue.Type"/>
[ top ]
Element interfaceName
Namespace http://www.imsglobal.org/services/lis/bdemsv1p0/imsbdemsFileData_v1p0
Diagram
Diagram imsbdemsFileData_v1p0.tmp#InterfaceNameValue.Type
Type InterfaceNameValue.Type
Properties
content: simple
Facets
enumeration personmanager
enumeration groupmanager
enumeration membershipmanager
enumeration coursetemplatemanager
enumeration courseofferingtemplate
enumeration coursesectiontemplate
enumeration sectionassociationmanager
enumeration lineitemmanager
enumeration resultmanager
enumeration resultvaluemanager
Used by
Complex Type TransactionRecord.Type
Source

<xs:element name="interfaceName" type="InterfaceNameValue.Type"/>
[ top ]
Element parameterInvoc
Namespace http://www.imsglobal.org/services/lis/bdemsv1p0/imsbdemsFileData_v1p0
Diagram
Diagram imsbdemsFileData_v1p0.tmp#ParameterInvoc.Type
Type ParameterInvoc.Type
Properties
content: simple
Facets
enumeration In
enumeration Out
Used by
Complex Type ParameterRecord.Type
Source

<xs:element name="parameterInvoc" type="ParameterInvoc.Type"/>
[ top ]
Element operationName
Namespace http://www.imsglobal.org/services/lis/bdemsv1p0/imsbdemsFileData_v1p0
Diagram
Diagram
Type xs:normalizedString
Properties
content: simple
Used by
Complex Type TransactionRecord.Type
Source

<xs:element name="operationName" type="xs:normalizedString"/>
[ top ]
Element parameterName
Namespace http://www.imsglobal.org/services/lis/bdemsv1p0/imsbdemsFileData_v1p0
Diagram
Diagram
Type xs:normalizedString
Properties
content: simple
Used by
Complex Type ParameterRecord.Type
Source

<xs:element name="parameterName" type="xs:normalizedString"/>
[ top ]
Element parameterType
Namespace http://www.imsglobal.org/services/lis/bdemsv1p0/imsbdemsFileData_v1p0
Diagram
Diagram
Type xs:normalizedString
Properties
content: simple
Used by
Complex Type ParameterRecord.Type
Source

<xs:element name="parameterType" type="xs:normalizedString"/>
[ top ]
Element queryObject
Namespace http://www.imsglobal.org/services/lis/bdemsv1p0/imsbdemsFileData_v1p0
Diagram
Diagram
Type xs:normalizedString
Properties
content: simple
Used by
Complex Type ParameterValue.Type
Source

<xs:element name="queryObject" type="xs:normalizedString"/>
[ top ]
Element sequenceIdentifier
Namespace http://www.imsglobal.org/services/lis/bdemsv1p0/imsbdemsFileData_v1p0
Diagram
Diagram
Type xs:dateTime
Properties
content: simple
Used by
Complex Type ParameterValue.Type
Source

<xs:element name="sequenceIdentifier" type="xs:dateTime"/>
[ top ]
Element status
Namespace http://www.imsglobal.org/services/lis/bdemsv1p0/imsbdemsFileData_v1p0
Diagram
Diagram
Type xs:normalizedString
Properties
content: simple
Used by
Complex Type ParameterValue.Type
Source

<xs:element name="status" type="xs:normalizedString"/>
[ top ]
Element url
Namespace http://www.imsglobal.org/services/lis/bdemsv1p0/imsbdemsFileData_v1p0
Diagram
Diagram imsbdemsFileData_v1p0.tmp#URL.Type
Type URL.Type
Properties
content: simple
Facets
whiteSpace preserve
minLength 1
maxLength 4096
Used by
Complex Type ParameterValue.Type
Source

<xs:element name="url" type="URL.Type"/>
[ top ]
Element transactionRecord
Namespace http://www.imsglobal.org/services/lis/bdemsv1p0/imsbdemsFileData_v1p0
Diagram

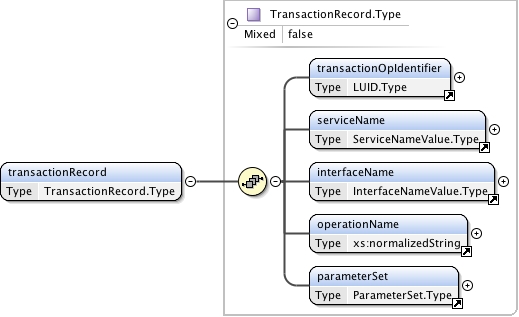

Diagram imsbdemsFileData_v1p0.tmp#transactionOpIdentifier imsbdemsFileData_v1p0.tmp#serviceName imsbdemsFileData_v1p0.tmp#interfaceName imsbdemsFileData_v1p0.tmp#operationName imsbdemsFileData_v1p0.tmp#parameterSet imsbdemsFileData_v1p0.tmp#TransactionRecord.Type
Type TransactionRecord.Type
Properties
content: complex
mixed: false
Used by
Complex Type BulkDataRecord.Type
Model transactionOpIdentifier , serviceName , interfaceName , operationName , parameterSet
Children interfaceName, operationName, parameterSet, serviceName, transactionOpIdentifier
Instance

<transactionRecord>
  <transactionOpIdentifier>{1,1}</transactionOpIdentifier>
  <serviceName>{1,1}</serviceName>
  <interfaceName>{1,1}</interfaceName>
  <operationName>{1,1}</operationName>
  <parameterSet>{1,1}</parameterSet>
</transactionRecord>
Source

<xs:element name="transactionRecord" type="TransactionRecord.Type"/>
[ top ]
Element transactionOpIdentifier
Namespace http://www.imsglobal.org/services/lis/bdemsv1p0/imsbdemsFileData_v1p0
Diagram
Diagram imsbdemsFileData_v1p0.tmp#LUID.Type
Type LUID.Type
Properties
content: simple
Used by
Complex Type TransactionRecord.Type
Source

<xs:element name="transactionOpIdentifier" type="LUID.Type"/>
[ top ]
Element parameterSet
Namespace http://www.imsglobal.org/services/lis/bdemsv1p0/imsbdemsFileData_v1p0
Diagram

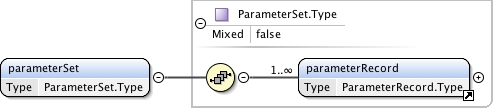

Diagram imsbdemsFileData_v1p0.tmp#parameterRecord imsbdemsFileData_v1p0.tmp#ParameterSet.Type
Type ParameterSet.Type
Properties
content: complex
mixed: false
Used by
Complex Type TransactionRecord.Type
Model parameterRecord+
Children parameterRecord
Instance

<parameterSet>
  <parameterRecord>{1,unbounded}</parameterRecord>
</parameterSet>
Source

<xs:element name="parameterSet" type="ParameterSet.Type"/>
[ top ]
Element parameterRecord
Namespace http://www.imsglobal.org/services/lis/bdemsv1p0/imsbdemsFileData_v1p0
Diagram

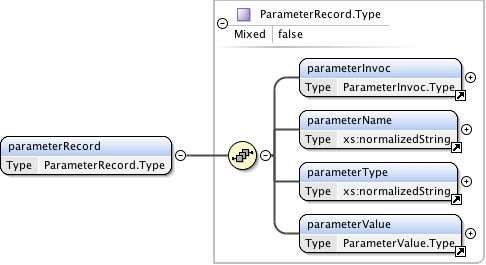

Diagram imsbdemsFileData_v1p0.tmp#parameterInvoc imsbdemsFileData_v1p0.tmp#parameterName imsbdemsFileData_v1p0.tmp#parameterType imsbdemsFileData_v1p0.tmp#parameterValue imsbdemsFileData_v1p0.tmp#ParameterRecord.Type
Type ParameterRecord.Type
Properties
content: complex
mixed: false
Used by
Complex Type ParameterSet.Type
Model parameterInvoc , parameterName , parameterType , parameterValue
Children parameterInvoc, parameterName, parameterType, parameterValue
Instance

<parameterRecord>
  <parameterInvoc>{1,1}</parameterInvoc>
  <parameterName>{1,1}</parameterName>
  <parameterType>{1,1}</parameterType>
  <parameterValue>{1,1}</parameterValue>
</parameterRecord>
Source

<xs:element name="parameterRecord" type="ParameterRecord.Type"/>
[ top ]
Element parameterValue
Namespace http://www.imsglobal.org/services/lis/bdemsv1p0/imsbdemsFileData_v1p0
Diagram

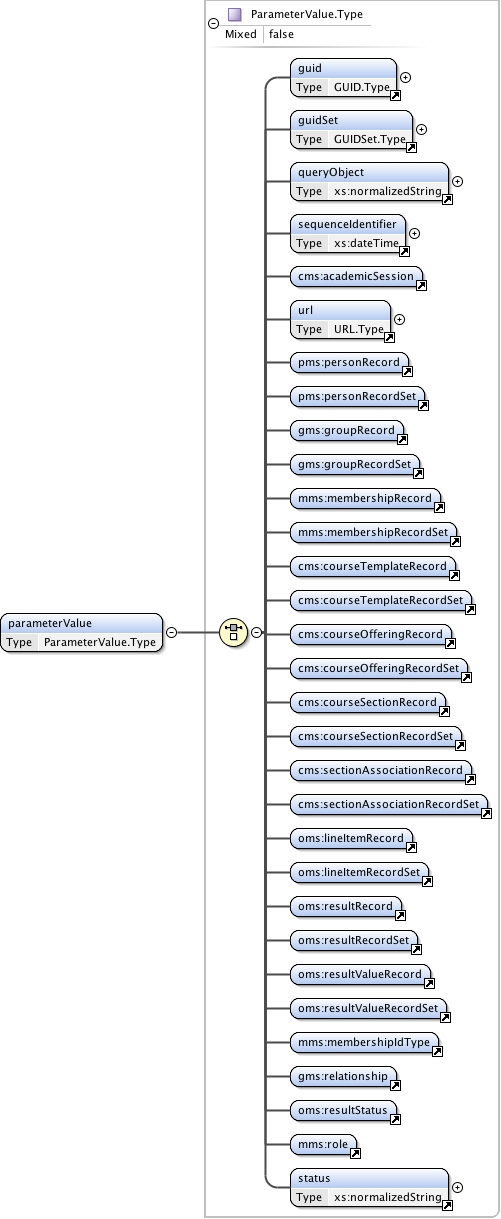

Diagram imsbdemsFileData_v1p0.tmp#guid imsbdemsFileData_v1p0.tmp#guidSet imsbdemsFileData_v1p0.tmp#queryObject imsbdemsFileData_v1p0.tmp#sequenceIdentifier imsbdemsFileData_v1p0.tmp#url imsbdemsFileData_v1p0.tmp#status imsbdemsFileData_v1p0.tmp#ParameterValue.Type
Type ParameterValue.Type
Properties
content: complex
mixed: false
Used by
Complex Type ParameterRecord.Type
Model guid | guidSet | queryObject | sequenceIdentifier | academicSession | url | personRecord | personRecordSet | groupRecord | groupRecordSet | membershipRecord | membershipRecordSet | courseTemplateRecord | courseTemplateRecordSet | courseOfferingRecord | courseOfferingRecordSet | courseSectionRecord | courseSectionRecordSet | sectionAssociationRecord | sectionAssociationRecordSet | lineItemRecord | lineItemRecordSet | resultRecord | resultRecordSet | resultValueRecord | resultValueRecordSet | membershipIdType | relationship | resultStatus | role | status
Children academicSession, courseOfferingRecord, courseOfferingRecordSet, courseSectionRecord, courseSectionRecordSet, courseTemplateRecord, courseTemplateRecordSet, groupRecord, groupRecordSet, guid, guidSet, lineItemRecord, lineItemRecordSet, membershipIdType, membershipRecord, membershipRecordSet, personRecord, personRecordSet, queryObject, relationship, resultRecord, resultRecordSet, resultStatus, resultValueRecord, resultValueRecordSet, role, sectionAssociationRecord, sectionAssociationRecordSet, sequenceIdentifier, status, url
Instance

<parameterValue>
  <guid>{1,1}</guid>
  <guidSet>{1,1}</guidSet>
  <queryObject>{1,1}</queryObject>
  <sequenceIdentifier>{1,1}</sequenceIdentifier>
  <academicSession>{1,1}</academicSession>
  <url>{1,1}</url>
  <personRecord>{1,1}</personRecord>
  <personRecordSet>{1,1}</personRecordSet>
  <groupRecord>{1,1}</groupRecord>
  <groupRecordSet>{1,1}</groupRecordSet>
  <membershipRecord>{1,1}</membershipRecord>
  <membershipRecordSet>{1,1}</membershipRecordSet>
  <courseTemplateRecord>{1,1}</courseTemplateRecord>
  <courseTemplateRecordSet>{1,1}</courseTemplateRecordSet>
  <courseOfferingRecord>{1,1}</courseOfferingRecord>
  <courseOfferingRecordSet>{1,1}</courseOfferingRecordSet>
  <courseSectionRecord>{1,1}</courseSectionRecord>
  <courseSectionRecordSet>{1,1}</courseSectionRecordSet>
  <sectionAssociationRecord>{1,1}</sectionAssociationRecord>
  <sectionAssociationRecordSet>{1,1}</sectionAssociationRecordSet>
  <lineItemRecord>{1,1}</lineItemRecord>
  <lineItemRecordSet>{1,1}</lineItemRecordSet>
  <resultRecord>{1,1}</resultRecord>
  <resultRecordSet>{1,1}</resultRecordSet>
  <resultValueRecord>{1,1}</resultValueRecord>
  <resultValueRecordSet>{1,1}</resultValueRecordSet>
  <membershipIdType>{1,1}</membershipIdType>
  <relationship>{1,1}</relationship>
  <resultStatus>{1,1}</resultStatus>
  <role>{1,1}</role>
  <status>{1,1}</status>
</parameterValue>
Source

<xs:element name="parameterValue" type="ParameterValue.Type"/>
[ top ]
Element guid
Namespace http://www.imsglobal.org/services/lis/bdemsv1p0/imsbdemsFileData_v1p0
Diagram
Diagram imsbdemsFileData_v1p0.tmp#GUID.Type
Type GUID.Type
Properties
content: simple
Used by
Complex Type ParameterValue.Type
Source

<xs:element name="guid" type="GUID.Type"/>
[ top ]

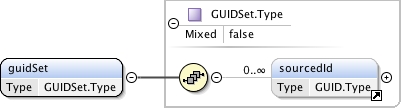

Element guidSet
Namespace http://www.imsglobal.org/services/lis/bdemsv1p0/imsbdemsFileData_v1p0
Diagram
Diagram imsbdemsFileData_v1p0.tmp#sourcedId imsbdemsFileData_v1p0.tmp#GUIDSet.Type
Type GUIDSet.Type
Properties
content: complex
mixed: false
Used by
Complex Type ParameterValue.Type
Model sourcedId*
Children sourcedId
Instance

<guidSet>
  <sourcedId>{0,unbounded}</sourcedId>
</guidSet>
Source

<xs:element name="guidSet" type="GUIDSet.Type"/>
[ top ]
Element sourcedId
Namespace http://www.imsglobal.org/services/lis/bdemsv1p0/imsbdemsFileData_v1p0
Diagram
Diagram imsbdemsFileData_v1p0.tmp#GUID.Type
Type GUID.Type
Properties
content: simple
Used by
Complex Type GUIDSet.Type
Source

<xs:element name="sourcedId" type="GUID.Type"/>
[ top ]

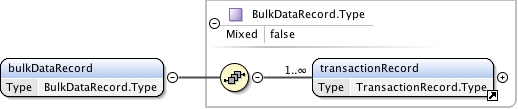

Element bulkDataRecord
Namespace http://www.imsglobal.org/services/lis/bdemsv1p0/imsbdemsFileData_v1p0
Diagram
Diagram imsbdemsFileData_v1p0.tmp#transactionRecord imsbdemsFileData_v1p0.tmp#BulkDataRecord.Type
Type BulkDataRecord.Type
Properties
content: complex
mixed: false
Model transactionRecord+
Children transactionRecord
Instance

<bulkDataRecord>
  <transactionRecord>{1,unbounded}</transactionRecord>
</bulkDataRecord>
Source

<xs:element name="bulkDataRecord" type="BulkDataRecord.Type"/>
[ top ]
Simple Type ParameterInvoc.Type
Namespace http://www.imsglobal.org/services/lis/bdemsv1p0/imsbdemsFileData_v1p0
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration In
enumeration Out
Used by
Element parameterInvoc
Source

<xs:simpleType name="ParameterInvoc.Type">
  <xs:restriction base="xs:string">
    <xs:enumeration value="In"/>
    <xs:enumeration value="Out"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type ServiceNameValue.Type
Namespace http://www.imsglobal.org/services/lis/bdemsv1p0/imsbdemsFileData_v1p0
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration pmsv2p0
enumeration gmsv2p0
enumeration mmsv2p0
enumeration cmsv1p0
enumeration omsv1p0
Used by
Element serviceName
Source

<xs:simpleType name="ServiceNameValue.Type">
  <xs:restriction base="xs:string">
    <xs:enumeration value="pmsv2p0"/>
    <xs:enumeration value="gmsv2p0"/>
    <xs:enumeration value="mmsv2p0"/>
    <xs:enumeration value="cmsv1p0"/>
    <xs:enumeration value="omsv1p0"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type InterfaceNameValue.Type
Namespace http://www.imsglobal.org/services/lis/bdemsv1p0/imsbdemsFileData_v1p0
Diagram
Diagram
Type restriction of xs:string
Facets
enumeration personmanager
enumeration groupmanager
enumeration membershipmanager
enumeration coursetemplatemanager
enumeration courseofferingtemplate
enumeration coursesectiontemplate
enumeration sectionassociationmanager
enumeration lineitemmanager
enumeration resultmanager
enumeration resultvaluemanager
Used by
Element interfaceName
Source

<xs:simpleType name="InterfaceNameValue.Type">
  <xs:restriction base="xs:string">
    <xs:enumeration value="personmanager"/>
    <xs:enumeration value="groupmanager"/>
    <xs:enumeration value="membershipmanager"/>
    <xs:enumeration value="coursetemplatemanager"/>
    <xs:enumeration value="courseofferingtemplate"/>
    <xs:enumeration value="coursesectiontemplate"/>
    <xs:enumeration value="sectionassociationmanager"/>
    <xs:enumeration value="lineitemmanager"/>
    <xs:enumeration value="resultmanager"/>
    <xs:enumeration value="resultvaluemanager"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type URL.Type
Namespace http://www.imsglobal.org/services/lis/bdemsv1p0/imsbdemsFileData_v1p0
Diagram
Diagram
Type restriction of xs:string
Facets
whiteSpace preserve
minLength 1
maxLength 4096
Used by
Element url
Source

<xs:simpleType name="URL.Type">
  <xs:restriction base="xs:string">
    <xs:maxLength value="4096"/>
    <xs:minLength value="1"/>
    <xs:whiteSpace value="preserve"/>
  </xs:restriction>
</xs:simpleType>
[ top ]
Simple Type LUID.Type
Namespace http://www.imsglobal.org/services/lis/bdemsv1p0/imsbdemsFileData_v1p0
Diagram
Diagram
Type xs:normalizedString
Used by
Source

<xs:simpleType name="LUID.Type">
  <xs:restriction base="xs:normalizedString"/>
</xs:simpleType>
[ top ]
Simple Type GUID.Type
Namespace http://www.imsglobal.org/services/lis/bdemsv1p0/imsbdemsFileData_v1p0
Diagram
Diagram
Type xs:normalizedString
Used by
Elements guid, sourcedId
Source

<xs:simpleType name="GUID.Type">
  <xs:restriction base="xs:normalizedString"/>
</xs:simpleType>
[ top ]
Complex Type BulkDataRecord.Type
Namespace http://www.imsglobal.org/services/lis/bdemsv1p0/imsbdemsFileData_v1p0
Annotations

umldocumentation

The BulkDataRecord complexType is the top-level container for the set of transaction records. Each service operation is described in its own transaction record.
Diagram
Diagram imsbdemsFileData_v1p0.tmp#transactionRecord
Properties
mixed: false
Used by
Element bulkDataRecord
Model transactionRecord+
Children transactionRecord
Source

<xs:complexType name="BulkDataRecord.Type" mixed="false">
  <xs:annotation>
    <xs:documentation source="umldocumentation">The BulkDataRecord complexType is the top-level container for the set of transaction records. Each service operation is described in its own transaction record.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="transactionRecord" minOccurs="1" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type TransactionRecord.Type
Namespace http://www.imsglobal.org/services/lis/bdemsv1p0/imsbdemsFileData_v1p0
Annotations

umldocumentation

The TransactionRecord complexType is the container for each transaction record. This contains the details for a service operation.
Diagram
Diagram imsbdemsFileData_v1p0.tmp#transactionOpIdentifier imsbdemsFileData_v1p0.tmp#serviceName imsbdemsFileData_v1p0.tmp#interfaceName imsbdemsFileData_v1p0.tmp#operationName imsbdemsFileData_v1p0.tmp#parameterSet
Properties
mixed: false
Used by
Model transactionOpIdentifier , serviceName , interfaceName , operationName , parameterSet
Children interfaceName, operationName, parameterSet, serviceName, transactionOpIdentifier
Source

<xs:complexType name="TransactionRecord.Type" mixed="false">
  <xs:annotation>
    <xs:documentation source="umldocumentation">The TransactionRecord complexType is the container for each transaction record. This contains the details for a service operation.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="transactionOpIdentifier" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="serviceName" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="interfaceName" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="operationName" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="parameterSet" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type ParameterSet.Type
Namespace http://www.imsglobal.org/services/lis/bdemsv1p0/imsbdemsFileData_v1p0
Annotations

umldocumentation

The ParameterSet complexType is the container for each parameter record. This is the set of parameters for the operation.
Diagram
Diagram imsbdemsFileData_v1p0.tmp#parameterRecord
Properties
mixed: false
Used by
Element parameterSet
Model parameterRecord+
Children parameterRecord
Source

<xs:complexType name="ParameterSet.Type" mixed="false">
  <xs:annotation>
    <xs:documentation source="umldocumentation">The ParameterSet complexType is the container for each parameter record. This is the set of parameters for the operation.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="parameterRecord" minOccurs="1" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type ParameterRecord.Type
Namespace http://www.imsglobal.org/services/lis/bdemsv1p0/imsbdemsFileData_v1p0
Annotations

umldocumentation

The ParameterRecord complexType is the container for the details of a paraneter. The actual data is referenced in the parameterValue.
Diagram
Diagram imsbdemsFileData_v1p0.tmp#parameterInvoc imsbdemsFileData_v1p0.tmp#parameterName imsbdemsFileData_v1p0.tmp#parameterType imsbdemsFileData_v1p0.tmp#parameterValue
Properties
mixed: false
Used by
Element parameterRecord
Model parameterInvoc , parameterName , parameterType , parameterValue
Children parameterInvoc, parameterName, parameterType, parameterValue
Source

<xs:complexType name="ParameterRecord.Type" mixed="false">
  <xs:annotation>
    <xs:documentation source="umldocumentation">The ParameterRecord complexType is the container for the details of a paraneter. The actual data is referenced in the parameterValue.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element ref="parameterInvoc" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="parameterName" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="parameterType" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="parameterValue" minOccurs="1" maxOccurs="1"/>
  </xs:sequence>
</xs:complexType>
[ top ]
Complex Type ParameterValue.Type
Namespace http://www.imsglobal.org/services/lis/bdemsv1p0/imsbdemsFileData_v1p0
Diagram
Diagram imsbdemsFileData_v1p0.tmp#guid imsbdemsFileData_v1p0.tmp#guidSet imsbdemsFileData_v1p0.tmp#queryObject imsbdemsFileData_v1p0.tmp#sequenceIdentifier imsbdemsFileData_v1p0.tmp#url imsbdemsFileData_v1p0.tmp#status
Properties
mixed: false
Used by
Element parameterValue
Model guid | guidSet | queryObject | sequenceIdentifier | academicSession | url | personRecord | personRecordSet | groupRecord | groupRecordSet | membershipRecord | membershipRecordSet | courseTemplateRecord | courseTemplateRecordSet | courseOfferingRecord | courseOfferingRecordSet | courseSectionRecord | courseSectionRecordSet | sectionAssociationRecord | sectionAssociationRecordSet | lineItemRecord | lineItemRecordSet | resultRecord | resultRecordSet | resultValueRecord | resultValueRecordSet | membershipIdType | relationship | resultStatus | role | status
Children academicSession, courseOfferingRecord, courseOfferingRecordSet, courseSectionRecord, courseSectionRecordSet, courseTemplateRecord, courseTemplateRecordSet, groupRecord, groupRecordSet, guid, guidSet, lineItemRecord, lineItemRecordSet, membershipIdType, membershipRecord, membershipRecordSet, personRecord, personRecordSet, queryObject, relationship, resultRecord, resultRecordSet, resultStatus, resultValueRecord, resultValueRecordSet, role, sectionAssociationRecord, sectionAssociationRecordSet, sequenceIdentifier, status, url
Source

<xs:complexType name="ParameterValue.Type" mixed="false">
  <xs:choice>
    <xs:element ref="guid" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="guidSet" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="queryObject" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="sequenceIdentifier" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="cms:academicSession" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="url" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="pms:personRecord" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="pms:personRecordSet" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="gms:groupRecord" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="gms:groupRecordSet" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="mms:membershipRecord" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="mms:membershipRecordSet" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="cms:courseTemplateRecord" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="cms:courseTemplateRecordSet" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="cms:courseOfferingRecord" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="cms:courseOfferingRecordSet" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="cms:courseSectionRecord" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="cms:courseSectionRecordSet" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="cms:sectionAssociationRecord" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="cms:sectionAssociationRecordSet" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="oms:lineItemRecord" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="oms:lineItemRecordSet" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="oms:resultRecord" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="oms:resultRecordSet" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="oms:resultValueRecord" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="oms:resultValueRecordSet" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="mms:membershipIdType" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="gms:relationship" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="oms:resultStatus" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="mms:role" minOccurs="1" maxOccurs="1"/>
    <xs:element ref="status" minOccurs="1" maxOccurs="1"/>
  </xs:choice>
</xs:complexType>
[ top ]
Complex Type GUIDSet.Type
Namespace http://www.imsglobal.org/services/lis/bdemsv1p0/imsbdemsFileData_v1p0
Diagram
Diagram imsbdemsFileData_v1p0.tmp#sourcedId
Properties
mixed: false
Used by
Element guidSet
Model sourcedId*
Children sourcedId
Source

<xs:complexType name="GUIDSet.Type" mixed="false">
  <xs:sequence>
    <xs:element ref="sourcedId" minOccurs="0" maxOccurs="unbounded"/>
  </xs:sequence>
</xs:complexType>
[ top ]
XML Schema documentation generated by ® XML Editor.
